8.3.2.1 Decimate-by-2 Filter

This decimation filter has 41 taps. The stop-band attenuation is approximately 90 dB and the pass-band flatness is ±0.05 dB. Table 8-1 shows corner frequencies for low-pass and high-pass filter options.

Table 8-1 Corner Frequencies for the Decimate-by-2 Filter
CORNERS (dB) LOW PASS HIGH PASS
–0.1 0.202 × fS 0.298 × fS
–0.5 0.210 × fS 0.290 × fS
–1 0.215 × fS 0.285 × fS
–3 0.227 × fS 0.273 × fS

Figure 8-4 and Figure 8-5 show the frequency response of decimate-by-2 filter from dc to fS / 2.

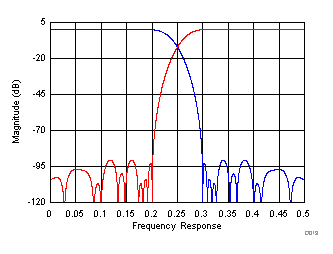

GUID-532FC1DC-21E1-4C1F-94FC-54606B5E6E1E-low.gifFigure 8-4 Decimate-by-2 Filter Response

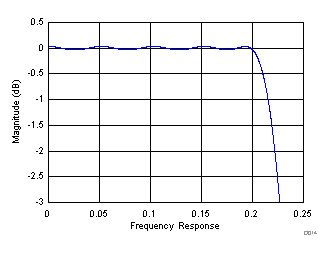

GUID-8F9291F2-8C52-4E8C-A51F-768579581B31-low.gifFigure 8-5 Decimate-by-2 Filter Response (Zoomed)
