8.3.2.2 Decimate-by-4 Filter Using a Digital Mixer

This band-pass decimation filter consists of a digital mixer and three concatenated FIR filters with a combined latency of approximately 28 output clock cycles. The alias band attenuation is approximately
55 dB and the pass-band flatness is ±0.1 dB. By default after reset, the band-pass filter is centered at fS / 16. Using the SPI, the center frequency can be programmed at N × fS / 16 (where N = 1, 3, 5, or 7). Table 8-2 shows corner frequencies for two extreme options.

Table 8-2 Corner frequencies for the Decimate-by-4 Filter
CORNERS (dB)CORNER FREQUENCY AT LOWER SIDE (Center Frequency fS / 16)CORNER FREQUENCY AT HIGHER SIDE (Center Frequency fS / 16)
–0.10.011 × fS0.114 × fS
–0.50.010 × fS0.116 × fS
–10.008 × fS0.117 × fS
–30.006 × fS0.120 × fS

Figure 8-6 and Figure 8-7 show the frequency response of the decimate-by-4 filter for center frequencies fS / 16 and 3 × fS / 16 (N = 1 and N = 3, respectively).

GUID-B5EB6D87-FCFA-4A6F-962D-5C6C6CF692C6-low.gifFigure 8-6 Decimate-by-4 Filter Response

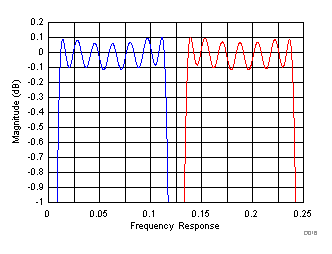

GUID-F2BB4F33-02FE-4B3B-A7A1-2BA09D3E2947-low.gifFigure 8-7 Decimate-by-4 Filter Response (Zoomed)
