8.2.2.2 Clock Input

The VSP5324-Q1 device can function with either single-ended or differential clock inputs. The device can automatically detect if a single-ended or differential clock is applied. To operate with a single-ended input clock, CLKP must be driven by a CMOS clock with CLKM tied to GND. Figure 82 and Figure 83 show the typical single-ended and differential clock termination schemes (respectively).

VSP5324-Q1 ai_1ended_clk_drvr_sles275.gifFigure 82. Single-Ended Clock Driving Circuit

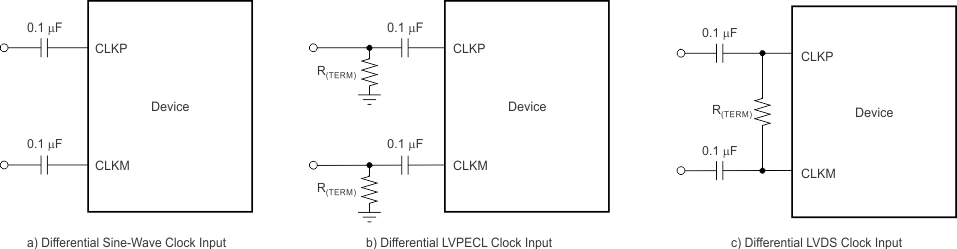

VSP5324-Q1 ai_diff_clock_drive_cir_sles275.gifFigure 83. Differential Clock Driving Circuit
