4.1 更改 MAIN 域的 MAIN_UARTx

不同 Jacinto 7 系列处理器上的默认端子输出是不同的。例如，UART0 用于 J721E 和 J7200 EVM 上的终端输出，但 UART8 是 J721S2 和 J784S4 EVM 的主要 UART 接口。由于 UART 端口的引脚也可以被其他应用使用，因此通常需要根据客户的用例定制 UART 端口。以下是基于 SDK 8.6 将 TDA4VH 主域上的默认 UART8 更改为 UART2 的示例，这也可以作为更改到其他 Jacinto 7 处理器上其他端口的参考。

添加 UART2 的时钟设置。

389 是 J784S4 系列的器件 ID，可从此链接找到。

图 4-1 TDA4VH UART 时钟 ID

diff --git a/arch/arm/mach-k3/j784s4/clk-data.c b/arch/arm/mach-k3/j784s4/clk-data.c
index a266735cc0..081c6d8970 100644
--- a/arch/arm/mach-k3/j784s4/clk-data.c
+++ b/arch/arm/mach-k3/j784s4/clk-data.c
@@ -283,7 +283,7 @@ static const struct clk_data clk_list[] = {
    CLK_MUX("emmcsd_refclk_sel_out1", emmcsd_refclk_sel_out1_parents, 4, 0x1080b4, 0, 2, 0),
    CLK_MUX("gtc_clk_mux_out0", gtc_clk_mux_out0_parents, 16, 0x108030, 0, 4, 0),
    CLK_DIV_DEFFREQ("usart_programmable_clock_divider_out0", "hsdiv4_16fft_main_1_hsdivout0_clk", 0x1081c0, 0, 2, 0, 0, 48000000),
-   CLK_DIV("usart_programmable_clock_divider_out5", "hsdiv4_16fft_main_1_hsdivout0_clk", 0x1081d4, 0, 2, 0, 0),
+   CLK_DIV("usart_programmable_clock_divider_out2", "hsdiv4_16fft_main_1_hsdivout0_clk", 0x1081c8, 0, 2, 0, 0),
    CLK_DIV("usart_programmable_clock_divider_out8", "hsdiv4_16fft_main_1_hsdivout0_clk", 0x1081e0, 0, 2, 0, 0),
    CLK_DIV("k3_pll_ctrl_wrap_main_0_chip_div24_clk_clk", "k3_pll_ctrl_wrap_main_0_sysclkout_clk", 0x41011c, 0, 5, 0, 0),
    CLK_DIV("k3_pll_ctrl_wrap_wkup_0_chip_div24_clk_clk", "k3_pll_ctrl_wrap_wkup_0_sysclkout_clk", 0x4201011c, 0, 5, 0, 0),
@@ -405,8 +405,8 @@ static const struct dev_clk soc_dev_clk_data[] = {
    DEV_CLK(279, 2, "wkup_i2c_mcupll_bypass_out0"),
    DEV_CLK(279, 3, "hsdiv4_16fft_mcu_1_hsdivout3_clk"),
    DEV_CLK(279, 4, "gluelogic_hfosc0_clkout"),
-   DEV_CLK(392, 0, "usart_programmable_clock_divider_out5"),
-   DEV_CLK(392, 3, "k3_pll_ctrl_wrap_main_0_chip_div1_clk_clk"),
+   DEV_CLK(389, 0, "usart_programmable_clock_divider_out2"),
+   DEV_CLK(389, 3, "k3_pll_ctrl_wrap_main_0_chip_div1_clk_clk"),
    DEV_CLK(395, 0, "usart_programmable_clock_divider_out8"),
    DEV_CLK(395, 3, "k3_pll_ctrl_wrap_main_0_chip_div1_clk_clk"),
    DEV_CLK(398, 0, "k3_pll_ctrl_wrap_main_0_chip_div1_clk_clk"),

在 UART2 列表中添加器件 ID 和 LPSC 设置。

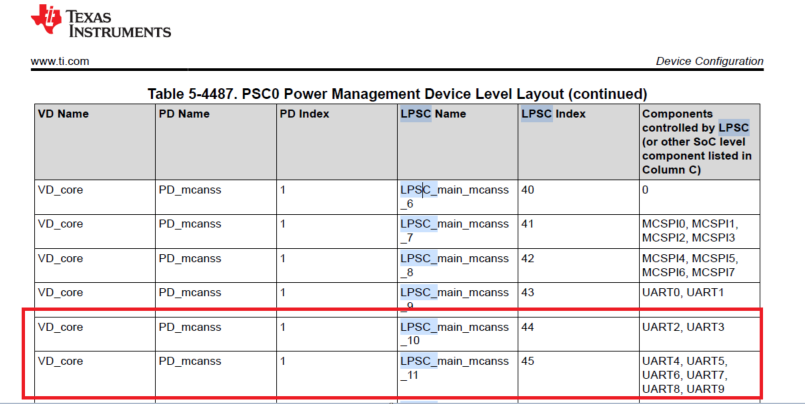

44 是 J784S4 系列 UART2 的 LPSC 索引，可从器件特定 TRM 中搜索。

图 4-2 TDA4VH UART LPSC

diff --git a/arch/arm/mach-k3/j784s4/dev-data.c b/arch/arm/mach-k3/j784s4/dev-data.c
index e44afad3ec..b5ae132b4a 100644
--- a/arch/arm/mach-k3/j784s4/dev-data.c
+++ b/arch/arm/mach-k3/j784s4/dev-data.c
@@ -51,6 +51,7 @@ static struct ti_lpsc soc_lpsc_list[] = {
 	[20] = PSC_LPSC(81, &soc_psc_list[2], &soc_pd_list[6], &soc_lpsc_list[18]),
 	[21] = PSC_LPSC(120, &soc_psc_list[2], &soc_pd_list[7], &soc_lpsc_list[22]),
 	[22] = PSC_LPSC(121, &soc_psc_list[2], &soc_pd_list[7], NULL),
+	[23] = PSC_LPSC(44, &soc_psc_list[2], &soc_pd_list[3], NULL),
 };
static struct ti_dev soc_dev_list[] = {
@@ -76,7 +77,7 @@ static struct ti_dev soc_dev_list[] = {
 	PSC_DEV(141, &soc_lpsc_list[14]),
 	PSC_DEV(140, &soc_lpsc_list[15]),
 	PSC_DEV(146, &soc_lpsc_list[16]),
-	PSC_DEV(392, &soc_lpsc_list[17]),
+	PSC_DEV(389, &soc_lpsc_list[23]),
 	PSC_DEV(395, &soc_lpsc_list[17]),
 	PSC_DEV(198, &soc_lpsc_list[18]),
 	PSC_DEV(202, &soc_lpsc_list[19]),
--

设置串行端口和引脚，应同时为 UBOOT dts 和内核 dts 文件设置。

diff --git a/arch/arm/dts/k3-j784s4-evm-u-boot.dtsi b/arch/arm/dts/k3-j784s4-evm-u-boot.dtsi
index 9d6f7dbbd5..3846d90f9a 100644
--- a/arch/arm/dts/k3-j784s4-evm-u-boot.dtsi
+++ b/arch/arm/dts/k3-j784s4-evm-u-boot.dtsi
@@ -12,7 +12,7 @@
 	aliases {
 		serial0 = &wkup_uart0;
 		serial1 = &mcu_uart0;
-		serial2 = &main_uart8;
+		serial2 = &main_uart2;
 		i2c0 = &wkup_i2c0;
 		i2c1 = &mcu_i2c0;
 		i2c2 = &mcu_i2c1;
@@ -105,6 +105,10 @@
 	u-boot,dm-spl;
 };

+&main_uart2_pins_default {
+	u-boot,dm-spl;
+};
+
 &main_mmc1_pins_default {
 	u-boot,dm-spl;
 };
@@ -132,6 +136,10 @@
 	u-boot,dm-spl;
 };

+&main_uart2 {
+	u-boot,dm-spl;
+};
+
 &mcu_uart0 {
 	u-boot,dm-spl;
 };
diff --git a/arch/arm/dts/k3-j784s4-evm.dts b/arch/arm/dts/k3-j784s4-evm.dts
index 5e213b2c11..7f8f507318 100644
--- a/arch/arm/dts/k3-j784s4-evm.dts
+++ b/arch/arm/dts/k3-j784s4-evm.dts
@@ -21,7 +21,7 @@
 		stdout-path = "serial2:115200n8";
 	};
 	aliases {
-		serial2 = &main_uart8;
+		serial2 = &main_uart2;
 		mmc0 = &main_sdhci0;
 		mmc1 = &main_sdhci1;
 		can0 = &mcu_mcan0;
@@ -402,6 +402,15 @@
 		>;
 	};

+	main_uart2_pins_default: main-uart2-pins-default {
+		pinctrl-single,pins = <
+			J784S4_IOPAD(0x0c4, PIN_INPUT, 11) /* (AD36) CTSn */
+			J784S4_IOPAD(0x0c8, PIN_OUTPUT, 11) /* (AJ32) RTSn */
+			J784S4_IOPAD(0x0dc, PIN_OUTPUT, 11) /* (AM36) TXD */
+			J784S4_IOPAD(0x0d8, PIN_INPUT, 11) /* (AM35) RXD*/
+		>;
+	};
+
 	main_i2c3_pins_default: main-i2c3-pins-default {
 		pinctrl-single,pins = <
 			J784S4_IOPAD(0x064, PIN_INPUT_PULLUP, 13) /* (AF38) MCAN0_TX.I2C3_SCL */
@@ -743,11 +752,13 @@
 	status = "disabled";
 };
-&main_uart1 {
-	status = "disabled";
+&main_uart2 {
+	status = "okay";
+	pinctrl-names = "default";
+	pinctrl-0 = <&main_uart2_pins_default>;
 };

-&main_uart2 {
+&main_uart1 {
 	status = "disabled";
 };

diff --git a/arch/arm/dts/k3-j784s4-r5-evm.dts b/arch/arm/dts/k3-j784s4-r5-evm.dts
index 4a697e2738..154a07c802 100644
--- a/arch/arm/dts/k3-j784s4-r5-evm.dts
+++ b/arch/arm/dts/k3-j784s4-r5-evm.dts
@@ -13,7 +13,7 @@
 / {
 	chosen {
 		firmware-loader = &fs_loader0;
-		stdout-path = &main_uart8;
+		stdout-path = &main_uart2;
 		tick-timer = &timer1;
 	};

@@ -151,6 +151,15 @@
 		>;
 	};

+	main_uart2_pins_default: main-uart2-pins-default {
+		pinctrl-single,pins = <
+			J784S4_IOPAD(0x0c4, PIN_INPUT, 11) /* (AD36) CTSn */
+			J784S4_IOPAD(0x0c8, PIN_OUTPUT, 11) /* (AJ32) RTSn */
+			J784S4_IOPAD(0x0dc, PIN_OUTPUT, 11) /* (AM36) TXD */
+			J784S4_IOPAD(0x0d8, PIN_INPUT, 11) /* (AM35) RXD*/
+		>;
+	};
+
 	 main_mmc1_pins_default: main-mmc1-pins-default {
 		pinctrl-single,pins = <
 			J784S4_IOPAD(0x104, PIN_INPUT, 0) /* (AB38) MMC1_CLK */
@@ -253,6 +262,12 @@
 	pinctrl-0 = <&main_uart8_pins_default>;
 };

+&main_uart2 {
+	status = "okay";
+	pinctrl-names = "default";
+	pinctrl-0 = <&main_uart2_pins_default>;
+};

配置 UART2 的引导命令。

diff --git a/include/configs/j784s4_evm.h b/include/configs/j784s4_evm.h
index eb609100b0..942d6c3dbe 100644
--- a/include/configs/j784s4_evm.h
+++ b/include/configs/j784s4_evm.h
@@ -75,7 +75,7 @@
 		"setenv fdtfile ${name_fdt}\0"				\
 	"name_kern=Image\0"						\
 	"console=ttyS2,115200n8\0"					\
-	"args_all=setenv optargs earlycon=ns16550a,mmio32,0x02880000 "	\
+	"args_all=setenv optargs earlycon=ns16550a,mmio32,0x02820000 "	\
 		"${mtdparts}\0"						\
 	"run_kern=booti ${loadaddr} ${rd_spec} ${fdtaddr}\0"

--

如果使用 OPTEE，请重建它。
只需根据此链接将导出 CFG_CONSOLE_UART=0x8 中的 8 更改为 2 即可。
更改 Arm® 信任固件。
```
diff --git a/plat/ti/k3/include/platform_def.h b/plat/ti/k3/include/platform_def.h
index 690c68e5c..db083ca2f 100644
--- a/plat/ti/k3/include/platform_def.h
+++ b/plat/ti/k3/include/platform_def.h
@@ -91,14 +91,14 @@
 /* Platform default console definitions */
 #ifndef K3_USART_BASE
-#define K3_USART_BASE 0x02800000
+#define K3_USART_BASE 0x02820000
 #endif
```
修改 UART2 的上述 K3_USART_BASE 后，需要以下指令重新编译 bl31.bin
1. cd $SDK_PATH/board-support/trusted-firmware-a-2.8+gitAUTOINC+2fcd408bb3
2. make CROSS_COMPILE=aarch64-none-linux-gnu- ARCH=aarch64 PLAT=k3 TARGET_BOARD=generic SPD=opted
3. cp ./build/k3/generic/release/bl31.bin ../prebuilt-images/
然后，根据重建的 bl31.bin，需要如下指令将其制作为 tispl.bin 的一部分，并将 tispl.bin 和 u-boot.img 复制到 SD 卡的 BOOT 中。
1. cd ../../
2. make u-boot-spl-jacinto
3. cp board-support/u-boot_build/a72/tispl.bin board-support/u-boot_build/a72/u-boot.img /media/$USER/BOOT

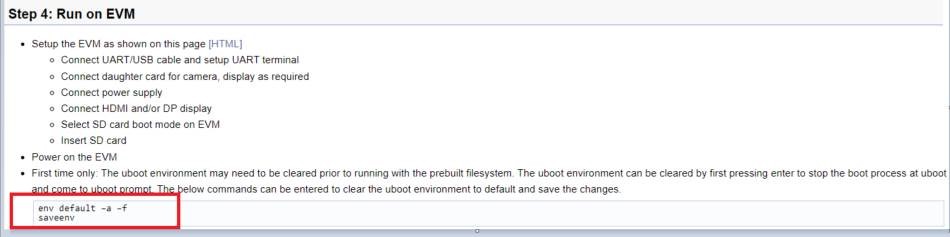

清除 UBOOT Environment，使其恢复为默认值并保存更改。
图 4-3 设置 UBOOT Environment.
警告： 从 SDK9.0 开始，不再要求执行第 7 步。应用上述 7 个步骤即可将 TDA4VH 上的默认主 UART 端口从 8 更改为 2。
