ZHCSRW2A february   2023  – august 2023 TDA4AH-Q1 , TDA4AP-Q1 , TDA4VH-Q1 , TDA4VP-Q1

ADVANCE INFORMATION

  1.   1
  2. 特性
  3. 应用
  4. 说明
    1. 3.1 功能方框图
  5. Revision History
  6. Device Comparison
  7. Terminal Configuration and Functions
    1. 6.1 Pin Diagrams
    2. 6.2 Pin Attributes
      1.      11
      2.      12
    3. 6.3 Signal Descriptions
      1.      14
      2. 6.3.1  ADC
        1. 6.3.1.1 MCU Domain
          1.        17
          2.        18
          3.        19
      3. 6.3.2  DDRSS
        1. 6.3.2.1 MAIN Domain
          1.        22
          2.        23
          3.        24
          4.        25
      4. 6.3.3  GPIO
        1. 6.3.3.1 MAIN Domain
          1.        28
        2. 6.3.3.2 WKUP Domain
          1.        30
      5. 6.3.4  I2C
        1. 6.3.4.1 MAIN Domain
          1.        33
          2.        34
          3.        35
          4.        36
          5.        37
          6.        38
          7.        39
        2. 6.3.4.2 MCU Domain
          1.        41
          2.        42
        3. 6.3.4.3 WKUP Domain
          1.        44
      6. 6.3.5  I3C
        1. 6.3.5.1 MCU Domain
          1.        47
      7. 6.3.6  MCAN
        1. 6.3.6.1 MAIN Domain
          1.        50
          2.        51
          3.        52
          4.        53
          5.        54
          6.        55
          7.        56
          8.        57
          9.        58
          10.        59
          11.        60
          12.        61
          13.        62
          14.        63
          15.        64
          16.        65
          17.        66
          18.        67
        2. 6.3.6.2 MCU Domain
          1.        69
          2.        70
      8. 6.3.7  MCSPI
        1. 6.3.7.1 MAIN Domain
          1.        73
          2.        74
          3.        75
          4.        76
          5.        77
          6.        78
          7.        79
        2. 6.3.7.2 MCU Domain
          1.        81
          2.        82
      9. 6.3.8  UART
        1. 6.3.8.1 MAIN Domain
          1.        85
          2.        86
          3.        87
          4.        88
          5.        89
          6.        90
          7.        91
          8.        92
          9.        93
          10.        94
        2. 6.3.8.2 MCU Domain
          1.        96
        3. 6.3.8.3 WKUP Domain
          1.        98
      10. 6.3.9  MDIO
        1. 6.3.9.1 MAIN Domain
          1.        101
          2.        102
        2. 6.3.9.2 MCU Domain
          1.        104
      11. 6.3.10 UFS
        1. 6.3.10.1 MAIN Domain
          1.        107
      12. 6.3.11 CPSW2G
        1. 6.3.11.1 MAIN Domain
          1.        110
        2. 6.3.11.2 MCU Domain
          1.        112
      13. 6.3.12 SGMII
        1. 6.3.12.1 MAIN Domain
          1.        115
      14. 6.3.13 ECAP
        1. 6.3.13.1 MAIN Domain
          1.        118
          2.        119
          3.        120
      15. 6.3.14 EQEP
        1. 6.3.14.1 MAIN Domain
          1.        123
          2.        124
          3.        125
      16. 6.3.15 EPWM
        1. 6.3.15.1 MAIN Domain
          1.        128
          2.        129
          3.        130
          4.        131
          5.        132
          6.        133
          7.        134
      17. 6.3.16 USB
        1. 6.3.16.1 MAIN Domain
          1.        137
      18. 6.3.17 Display Port
        1. 6.3.17.1 MAIN Domain
          1.        140
      19. 6.3.18 Hyperlink
        1. 6.3.18.1 MAIN Domain
          1.        143
          2.        144
          3.        145
      20. 6.3.19 PCIE
        1. 6.3.19.1 MAIN Domain
          1.        148
      21. 6.3.20 SERDES
        1. 6.3.20.1 MAIN Domain
          1.        151
          2.        152
          3.        153
          4.        154
      22. 6.3.21 DSI
        1. 6.3.21.1 MAIN Domain
          1.        157
          2.        158
      23. 6.3.22 CSI
        1. 6.3.22.1 MAIN Domain
          1.        161
          2.        162
          3.        163
      24. 6.3.23 MCASP
        1. 6.3.23.1 MAIN Domain
          1.        166
          2.        167
          3.        168
          4.        169
          5.        170
      25. 6.3.24 DMTIMER
        1. 6.3.24.1 MAIN Domain
          1.        173
        2. 6.3.24.2 MCU Domain
          1.        175
      26. 6.3.25 CPTS
        1. 6.3.25.1 MAIN Domain
          1.        178
        2. 6.3.25.2 MCU Domain
          1.        180
      27. 6.3.26 DSS
        1. 6.3.26.1 MAIN Domain
          1.        183
      28. 6.3.27 GPMC
        1. 6.3.27.1 MAIN Domain
          1.        186
      29. 6.3.28 MMC
        1. 6.3.28.1 MAIN Domain
          1.        189
          2.        190
      30. 6.3.29 OSPI
        1. 6.3.29.1 MCU Domain
          1.        193
          2.        194
      31. 6.3.30 Hyperbus
        1. 6.3.30.1 MCU Domain
          1.        197
      32. 6.3.31 Emulation and Debug
        1. 6.3.31.1 MAIN Domain
          1.        200
          2.        201
      33. 6.3.32 System and Miscellaneous
        1. 6.3.32.1 Boot Mode configuration
          1.        204
        2. 6.3.32.2 Clock
          1.        206
          2.        207
        3. 6.3.32.3 System
          1.        209
          2.        210
        4. 6.3.32.4 EFUSE
          1.        212
        5. 6.3.32.5 VMON
          1.        214
      34. 6.3.33 Power
        1.       216
    4. 6.4 Pin Connectivity Requirements
  8. Specifications
    1. 7.1  Absolute Maximum Ratings
    2. 7.2  ESD Ratings
    3. 7.3  Power-On-Hour (POH) Limits
    4. 7.4  Recommended Operating Conditions
    5. 7.5  Operating Performance Points
    6. 7.6  Electrical Characteristics
      1. 7.6.1  I2C, Open-Drain, Fail-Safe (I2C OD FS) Electrical Characteristics
      2. 7.6.2  Fail-Safe Reset (FS Reset) Electrical Characteristics
      3. 7.6.3  HFOSC/LFOSC Electrical Characteristics
      4. 7.6.4  eMMCPHY Electrical Characteristics
      5. 7.6.5  SDIO Electrical Characteristics
      6. 7.6.6  CSI2/DSI D-PHY Electrical Characteristics
      7. 7.6.7  ADC12B Electrical Characteristics
      8. 7.6.8  LVCMOS Electrical Characteristics
      9. 7.6.9  USB2PHY Electrical Characteristics
      10. 7.6.10 SerDes 2-L-PHY/4-L-PHY Electrical Characteristics
      11. 7.6.11 UFS M-PHY Electrical Characteristics
      12. 7.6.12 eDP/DP AUX-PHY Electrical Characteristics
      13. 7.6.13 DDR0 Electrical Characteristics
    7. 7.7  VPP Specifications for One-Time Programmable (OTP) eFuses
      1. 7.7.1 Recommended Operating Conditions for OTP eFuse Programming
      2. 7.7.2 Hardware Requirements
      3. 7.7.3 Programming Sequence
      4. 7.7.4 Impact to Your Hardware Warranty
    8. 7.8  Thermal Resistance Characteristics
      1. 7.8.1 Thermal Resistance Characteristics for ALY Package
    9. 7.9  Temperature Sensor Characteristics
    10. 7.10 Timing and Switching Characteristics
      1. 7.10.1 Timing Parameters and Information
      2. 7.10.2 Power Supply Sequencing
        1. 7.10.2.1 Power Supply Slew Rate Requirement
        2. 7.10.2.2 Combined MCU and Main Domains Power- Up Sequencing
        3. 7.10.2.3 Combined MCU and Main Domains Power- Down Sequencing
        4. 7.10.2.4 Isolated MCU and Main Domains Power- Up Sequencing

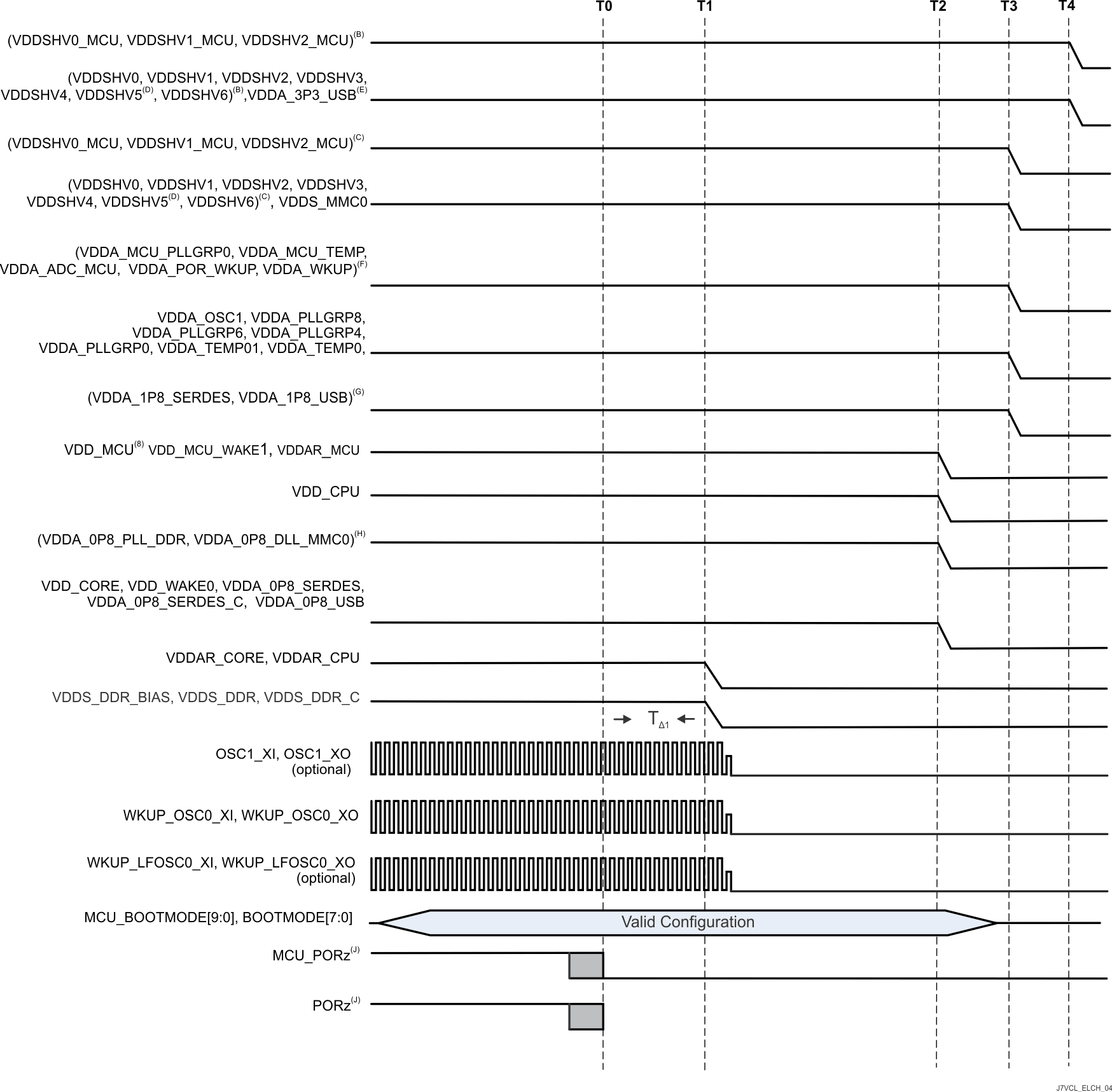

        5. 7.10.2.5 Isolated MCU and Main Domains Power- Down Sequencing
        6. 7.10.2.6 Independent MCU and Main Domains, Entry and Exit of MCU Only Sequencing
        7. 7.10.2.7 Independent MCU and Main Domains, Entry and Exit of DDR Retention State
        8. 7.10.2.8 Independent MCU and Main Domains, Entry and Exit of GPIO Retention Sequencing
      3. 7.10.3 System Timing
        1. 7.10.3.1 Reset Timing
        2. 7.10.3.2 Safety Signal Timing
        3. 7.10.3.3 Clock Timing
      4. 7.10.4 Clock Specifications
        1. 7.10.4.1 Input and Output Clocks / Oscillators
          1. 7.10.4.1.1 WKUP_OSC0 Internal Oscillator Clock Source
            1. 7.10.4.1.1.1 Load Capacitance
            2. 7.10.4.1.1.2 Shunt Capacitance
          2. 7.10.4.1.2 WKUP_OSC0 LVCMOS Digital Clock Source
          3. 7.10.4.1.3 Auxiliary OSC1 Internal Oscillator Clock Source
            1. 7.10.4.1.3.1 Load Capacitance
            2. 7.10.4.1.3.2 Shunt Capacitance
          4. 7.10.4.1.4 Auxiliary OSC1 LVCMOS Digital Clock Source
          5. 7.10.4.1.5 Auxiliary OSC1 Not Used
        2. 7.10.4.2 Output Clocks
        3. 7.10.4.3 PLLs
        4. 7.10.4.4 Module and Peripheral Clocks Frequencies
      5. 7.10.5 Peripherals
        1. 7.10.5.1  ATL
          1. 7.10.5.1.1 ATL_PCLK Timing Requirements
          2. 7.10.5.1.2 ATL_AWS[x] Timing Requirements
          3. 7.10.5.1.3 ATL_BWS[x] Timing Requirements
          4. 7.10.5.1.4 ATCLK[x] Switching Characteristics
        2. 7.10.5.2  CPSW2G
          1. 7.10.5.2.1 CPSW2G MDIO Interface Timings
          2. 7.10.5.2.2 CPSW2G RMII Timings
            1. 7.10.5.2.2.1 CPSW2G RMII[x]_REF_CLK Timing Requirements – RMII Mode
            2. 7.10.5.2.2.2 CPSW2G RMII[x]_RXD[1:0], RMII[x]_CRS_DV, and RMII[x]_RX_ER Timing Requirements – RMII Mode
            3. 7.10.5.2.2.3 CPSW2G RMII[x]_TXD[1:0], and RMII[x]_TX_EN Switching Characteristics – RMII Mode
          3. 7.10.5.2.3 CPSW2G RGMII Timings
            1. 7.10.5.2.3.1 RGMII[x]_RXC Timing Requirements – RGMII Mode
            2. 7.10.5.2.3.2 CPSW2G Timing Requirements for RGMII[x]_RD[3:0], and RGMII[x]_RCTL – RGMII Mode
            3. 7.10.5.2.3.3 CPSW2G RGMII[x]_TXC Switching Characteristics – RGMII Mode
            4. 7.10.5.2.3.4 RGMII[x]_TD[3:0], and RGMII[x]_TX_CTL Switching Characteristics – RGMII Mode
        3. 7.10.5.3  CSI-2
        4. 7.10.5.4  DDRSS
        5. 7.10.5.5  DSS
        6. 7.10.5.6  eCAP
          1. 7.10.5.6.1 Timing Requirements for eCAP
          2. 7.10.5.6.2 Switching Characteristics for eCAP
        7. 7.10.5.7  EPWM
          1. 7.10.5.7.1 Timing Requirements for eHRPWM
          2. 7.10.5.7.2 Switching Characteristics for eHRPWM
        8. 7.10.5.8  eQEP
          1. 7.10.5.8.1 Timing Requirements for eQEP
          2. 7.10.5.8.2 Switching Characteristics for eQEP
        9. 7.10.5.9  GPIO
          1. 7.10.5.9.1 GPIO Timing Requirements
          2. 7.10.5.9.2 GPIO Switching Characteristics
        10. 7.10.5.10 GPMC
          1. 7.10.5.10.1 GPMC and NOR Flash — Synchronous Mode
            1. 7.10.5.10.1.1 GPMC and NOR Flash Timing Requirements — Synchronous Mode
            2. 7.10.5.10.1.2 GPMC and NOR Flash Switching Characteristics – Synchronous Mode
          2. 7.10.5.10.2 GPMC and NOR Flash — Asynchronous Mode
            1. 7.10.5.10.2.1 GPMC and NOR Flash Timing Requirements – Asynchronous Mode
            2. 7.10.5.10.2.2 GPMC and NOR Flash Switching Characteristics – Asynchronous Mode
          3. 7.10.5.10.3 GPMC and NAND Flash — Asynchronous Mode
            1. 7.10.5.10.3.1 GPMC and NAND Flash Timing Requirements – Asynchronous Mode
            2. 7.10.5.10.3.2 GPMC and NAND Flash Switching Characteristics – Asynchronous Mode
          4. 7.10.5.10.4 GPMC0 IOSET
        11. 7.10.5.11 HyperBus
          1. 7.10.5.11.1 Timing Requirements for HyperBus
          2. 7.10.5.11.2 HyperBus 166 MHz Switching Characteristics
          3. 7.10.5.11.3 HyperBus 100 MHz Switching Characteristics
        12. 7.10.5.12 I2C
        13. 7.10.5.13 I3C
        14. 7.10.5.14 MCAN
        15. 7.10.5.15 MCASP
        16. 7.10.5.16 MCSPI
          1. 7.10.5.16.1 MCSPI — Controller Mode
          2. 7.10.5.16.2 MCSPI — Peripheral Mode
        17. 7.10.5.17 MMCSD
          1. 7.10.5.17.1 MMC0 - eMMC Interface
            1. 7.10.5.17.1.1 Legacy SDR Mode
            2. 7.10.5.17.1.2 High Speed SDR Mode
            3. 7.10.5.17.1.3 High Speed DDR Mode
            4. 7.10.5.17.1.4 HS200 Mode
            5. 7.10.5.17.1.5 HS400 Mode
          2. 7.10.5.17.2 MMC1/2 - SD/SDIO Interface
            1. 7.10.5.17.2.1 Default Speed Mode
            2. 7.10.5.17.2.2 High Speed Mode
            3. 7.10.5.17.2.3 UHS–I SDR12 Mode
            4. 7.10.5.17.2.4 UHS–I SDR25 Mode
            5. 7.10.5.17.2.5 UHS–I SDR50 Mode
            6. 7.10.5.17.2.6 UHS–I DDR50 Mode
            7. 7.10.5.17.2.7 UHS–I SDR104 Mode
        18. 7.10.5.18 CPTS
          1. 7.10.5.18.1 CPTS Timing Requirements
          2. 7.10.5.18.2 CPTS Switching Characteristics
        19. 7.10.5.19 OSPI
          1. 7.10.5.19.1 OSPI0 PHY Mode
            1. 7.10.5.19.1.1 OSPI With Data Training
              1. 7.10.5.19.1.1.1 OSPI Switching Characteristics – Data Training
            2. 7.10.5.19.1.2 OSPI Without Data Training
              1. 7.10.5.19.1.2.1 OSPI Timing Requirements – SDR Mode
              2. 7.10.5.19.1.2.2 OSPI Switching Characteristics – SDR Mode
              3. 7.10.5.19.1.2.3 OSPI Timing Requirements – DDR Mode
              4. 7.10.5.19.1.2.4 OSPI Switching Characteristics – DDR Mode
          2. 7.10.5.19.2 OSPI0 Tap Mode
            1. 7.10.5.19.2.1 OSPI0 Tap SDR Timing
            2. 7.10.5.19.2.2 OSPI0 Tap DDR Timing
        20. 7.10.5.20 OLDI
          1. 7.10.5.20.1 OLDI Switching Characteristics
        21. 7.10.5.21 PCIE
        22. 7.10.5.22 Timers
          1. 7.10.5.22.1 Timing Requirements for Timers
          2. 7.10.5.22.2 Switching Characteristics for Timers
        23. 7.10.5.23 UART
          1. 7.10.5.23.1 Timing Requirements for UART
          2. 7.10.5.23.2 UART Switching Characteristics
        24. 7.10.5.24 USB
      6. 7.10.6 Emulation and Debug
        1. 7.10.6.1 Trace
        2. 7.10.6.2 JTAG
          1. 7.10.6.2.1 JTAG Electrical Data and Timing
            1. 7.10.6.2.1.1 JTAG Timing Requirements
            2. 7.10.6.2.1.2 JTAG Switching Characteristics
  9. Detailed Description
    1. 8.1 Overview
    2. 8.2 Processor Subsystems
      1. 8.2.1 Arm Cortex-A72
      2. 8.2.2 Arm Cortex-R5F
      3. 8.2.3 DSP C71x
    3. 8.3 Accelerators and Coprocessors
      1. 8.3.1 GPU
      2. 8.3.2 VPAC
      3. 8.3.3 DMPAC
    4. 8.4 Other Subsystems
      1. 8.4.1 MSMC
      2. 8.4.2 NAVSS
        1. 8.4.2.1 NAVSS0
        2. 8.4.2.2 MCU_NAVSS
      3. 8.4.3 PDMA Controller
      4. 8.4.4 Power Supply
      5. 8.4.5 Peripherals
        1. 8.4.5.1  ADC
        2. 8.4.5.2  ATL
        3. 8.4.5.3  CSI
          1. 8.4.5.3.1 Camera Streaming Interface Receiver (CSI_RX_IF) and MIPI DPHY Receiver (DPHY_RX)
          2. 8.4.5.3.2 Camera Streaming Interface Transmitter (CSI_TX_IF)
        4. 8.4.5.4  CPSW2G
        5. 8.4.5.5  CPSW9G
        6. 8.4.5.6  DCC
        7. 8.4.5.7  DDRSS
        8. 8.4.5.8  DSS
          1. 8.4.5.8.1 DSI
          2. 8.4.5.8.2 eDP
        9. 8.4.5.9  VPFE
        10. 8.4.5.10 eCAP
        11. 8.4.5.11 EPWM
        12. 8.4.5.12 ELM
        13. 8.4.5.13 ESM
        14. 8.4.5.14 eQEP
        15. 8.4.5.15 GPIO
        16. 8.4.5.16 GPMC
        17. 8.4.5.17 Hyperbus
        18. 8.4.5.18 I2C
        19. 8.4.5.19 I3C
        20. 8.4.5.20 MCAN
        21. 8.4.5.21 MCASP
        22. 8.4.5.22 MCRC Controller
        23. 8.4.5.23 MCSPI
        24. 8.4.5.24 MMC/SD
        25. 8.4.5.25 OSPI
        26. 8.4.5.26 PCIE
        27. 8.4.5.27 SerDes
        28. 8.4.5.28 WWDT
        29. 8.4.5.29 Timers
        30. 8.4.5.30 UART
        31. 8.4.5.31 USB
        32. 8.4.5.32 UFS
  10. Applications, Implementation, and Layout
    1. 9.1 Device Connection and Layout Fundamentals
      1. 9.1.1 Power Supply Decoupling and Bulk Capacitors
        1. 9.1.1.1 Power Distribution Network Implementation Guidance
      2. 9.1.2 External Oscillator
      3. 9.1.3 JTAG and EMU
      4. 9.1.4 Reset
      5. 9.1.5 Unused Pins
      6. 9.1.6 Hardware Design Guide for JacintoTM 7 Devices
    2. 9.2 Peripheral- and Interface-Specific Design Information
      1. 9.2.1 LPDDR4 Board Design and Layout Guidelines
      2. 9.2.2 OSPI and QSPI Board Design and Layout Guidelines
        1. 9.2.2.1 No Loopback and Internal Pad Loopback
        2. 9.2.2.2 External Board Loopback
        3. 9.2.2.3 DQS (only available in Octal Flash devices)
      3. 9.2.3 USB VBUS Design Guidelines
      4. 9.2.4 System Power Supply Monitor Design Guidelines using VMON/POK
      5. 9.2.5 High Speed Differential Signal Routing Guidance
      6. 9.2.6 Thermal Solution Guidance
  11. 10Device and Documentation Support
    1. 10.1 Device Nomenclature
      1. 10.1.1 Standard Package Symbolization
      2. 10.1.2 Device Naming Convention
    2. 10.2 Tools and Software
    3. 10.3 支持资源
    4. 10.4 Trademarks
    5. 10.5 静电放电警告
    6. 10.6 术语表
  12. 11Mechanical, Packaging, and Orderable Information
    1. 11.1 Packaging Information

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • ALY|1414
散热焊盘机械数据 (封装 | 引脚)
订购信息

Isolated MCU and Main Domains Power- Down Sequencing

Figure 7-6 describes the device power-down sequencing.

Time stamp markers:
  • T0 – MCU_PORz and PORz assert low to put all processor resources in safe state. (0 ms)
  • T1 – Main DDR, SRAM Core, and SRAM CPU power domains start ramp-down. (0.5 ms)
  • T2 – All core voltages start supply ramp-down. (2.5 ms)
  • T3 – All 1.8V voltages start supply ramp-down. (3.0 ms)
  • T4 – All 3.3V voltages start supply ramp-down. (3.5 ms)
Any MCU or Main dual voltage IO domains (VDDSHVn_MCU or VDDSHVn) being supplied by 3.3 V to support 3.3-V digital interfaces.
Any MCU or Main dual voltage IO supplies (VDDSHVn_MCU or VDDSHVn) being supplied by 1.8 V to support 1.8-V digital interfaces. When eMMC memories are used, Main 1.8-V supplies could have a ramp-down aligned to T1 due to PDN designs grouping supplies with VDD_MMC0.
VDDSHV5 supports MMC1 signaling for SD memory cards. A dual voltage (3.3 V/1.8 V) power rail is required for compliant, high-speed SD card operations. If compliant high-speed SD card operation is needed, then an independent, dual voltage (3.3 V/1.8 V) power source and rail are required. The start of ramp-down from 3.3 V/1.8 V will be same as other 3.3-V domains as shown. If SD card is not needed or standard data rates with fixed 3.3-V operation is acceptable, then domain can be grouped with digital IO 3.3-V power rail. If a SD card is capable of operating with fixed 1.8 V, then domain can be grouped with digital IO 1.8-V power rail.
VDDA_3P3_USB is 3.3-V analog domain used for USB 2.0 differential interface signaling. A low noise, analog supply is recommended to provide best signal integrity for USB data eye mask compliance. The start of ramp-down from 3.3 V will be same as other 3.3-V domains as shown. If USB interface is not needed or data bit errors can be tolerated, then domain can be grouped with 3.3-V digital IO power rail either directly or through a supply filter.
VDDA_1P8_<clk/pll/ana> are 1.8-V analog domains supporting clock oscillator, PLL and analog circuitry needing a low noise supply for optimal performance. It is not recommended to combine digital VDDSHVn_MCU and VDDSHVn IO domains since high frequency switching noise could negatively impact jitter performance of clock, PLL and DLL signals. Combining analog VDDA_1p8_<phy> domains should be avoided but if grouped, then in-line ferrite bead supply filtering is required.
VDDA_1P8_<phy> are 1.8-V analog domains supporting multiple serial PHY interfaces. A low noise, analog supply is recommended to provide best signal integrity, interface performance and spec compliance. If any of these interfaces are not needed, data bit errors or non-compliant operation can be tolerated, then domains can be grouped with digital IO 1.8-V power rail either directly or through an in-line supply filter is allowed.
VDDA_0P8_<dll/pll> are 0.8-V analog domains supporting PLL and DLL circuitry needing a low noise supply for optimal performance. It is not recommended to combine these domains with any other 0.8-V domains since high frequency switching noise could negatively impact jitter performance of PLL and DLL signals.
VDD_MCU is a digital voltage domain with a wide range enabling it to be grouped and ramped-up with either 0.8-V VDD_CORE or 0.85V RAM array (VDDAR_xxx) domains.
MCU_PORz and PORz must be asserted low for TΔ1 = 200 us MIN to ensure SoC resources enter into safe state before any voltage begins to ramp down.
Figure 7-6 Isolated MCU and Main Domains, Primary Power- Down Sequencing
