5 Pin Configuration and Functions

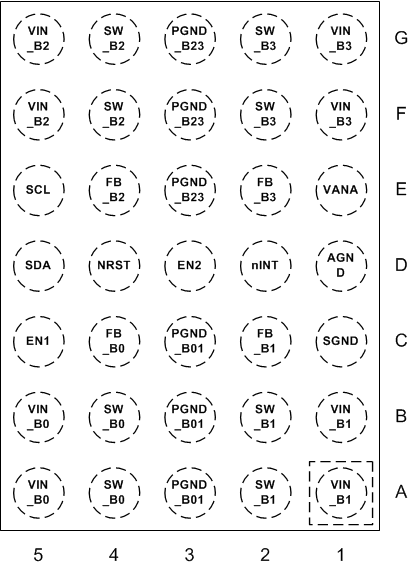

GUID-7A43714B-A5BC-4BF9-9A77-CB506A783981-low.gifFigure 5-1 YFF Package35-Pin DSBGATop View

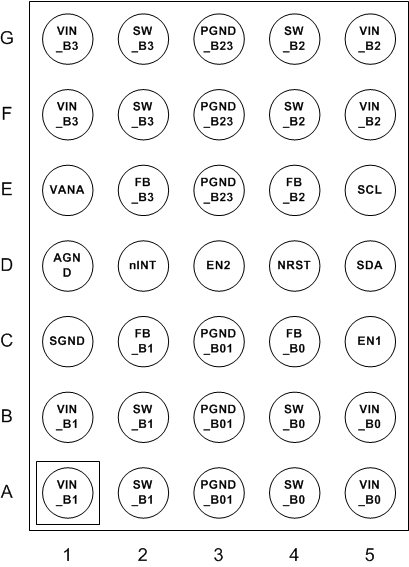

GUID-4E456EB4-3BC4-4743-ADF3-191453774B88-low.gifFigure 5-2 YFF Package35-Pin DSBGABottom View
Table 5-1 Pin Functions
PIN TYPE DESCRIPTION
NO. NAME
A1, B1 VIN_B1 P Input for Buck1. The separate power pins VIN_Bx are not connected together internally – VIN_Bx pins must be connected together in the application and be locally bypassed.
A2, B2 SW_B1 A Buck1 switch node.
A3, B3, C3 PGND_B01 G Power Ground for Buck0 and Buck1.
A4, B4 SW_B0 A Buck0 switch node.
A5, B5 VIN_B0 P Input for Buck0. The separate power pins VIN_Bx are not connected together internally – VIN_Bx pins must be connected together in the application and be locally bypassed.
C1 SGND G Substrate Ground.
C2 FB_B1 A Output voltage feedback for Buck1.
C4 FB_B0 A Output voltage feedback for Buck0.
C5 EN1 D/I Programmable Enable signal for Buck converter core or cores. Can be also configured to switch between two output voltage levels.
D1 AGND G Ground.
D2 nINT D/O Open-drain interrupt output. Active LOW.
D3 EN2 D/I Programmable Enable signal for Buck converter one or more cores. Can be also configured to switch between two output voltage levels.
D4 NRST D/I Reset signal for the device. Can be also used to enable the regulator.
D5 SDA D/I/O Serial interface data input and output for system access. Connect a pullup resistor.
E1 VANA P Supply voltage for Analog and Digital blocks.
E2 FB_B3 A Output voltage feedback for Buck3.
E4 FB_B2 A Output voltage feedback for Buck2.
E5 SCL D/I Serial interface clock input for system access. Connect a pullup resistor.
F1, G1 VIN_B3 P Input for Buck3. The separate power pins VIN_Bx are not connected together internally – VIN_Bx pins must be connected together in the application and be locally bypassed.
F2, G2 SW_B3 A Buck3 switch node.
E3, F3, G3 PGND_B23 G Power Ground for Buck2 and Buck3.
F4, G4 SW_B2 A Buck2 switch node.
F5, G5 VIN_B2 P Input for Buck2. The separate power pins VIN_Bx are not connected together internally - VIN_Bx pins must be connected together in the application and be locally bypassed.
A: Analog Pin, D: Digital Pin, G: Ground Pin, P: Power Pin, I: Input Pin, O: Output Pin
