Application Curves

Measurements are done using typical application set up with connections shown in Figure 8-1. Graphs may not reflect the OTP default settings. Unless otherwise specified: VIN = 3.7 V, V(NRST) = 1.8 V, TA = 25 °C, ƒSW = 3 MHz, L = 470 nH (TDK VLS252010HBX-R47M), ILIM FWD set to maximum 5 A.

VIN = 3.7 V
VOUT settings = 1000 mV, 1200 mV, 1800 mV, and 2500 mV

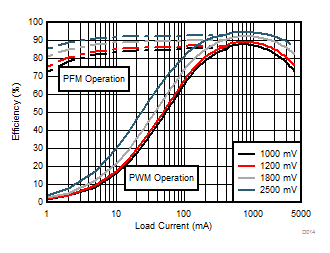

Figure 8-2 Efficiency vs Load Current
Load = 1A
VOUT settings = 1000 mV, 1200 mV, 1800 mV, and 2500 mV

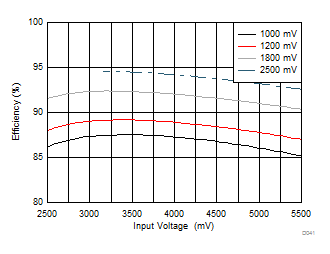

Figure 8-4 Efficiency vs Input Voltage in PWM Mode
Change in Output Voltage from Zero Load (%)
VOUT settings = 1000 mV, 1200 mV, 1800 mV, and 2500 mV

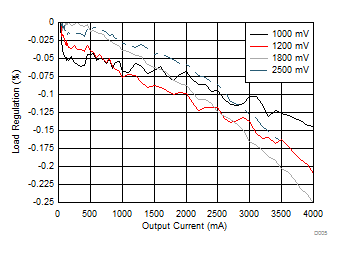

Figure 8-6 DC Load Regulation in PWM mode
VOUT setting = 2500 mV

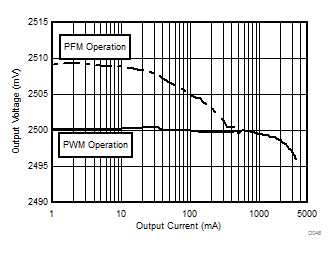

Figure 8-8 Output Voltage vs Load Current in PWM-PFM Mode
VOUT setting = 1000 mV
Load = 1 A (PWM Mode) and 100 mA (PFM Mode)
Figure 8-10 Output Voltage vs Temperature
Load = 1 A
Figure 8-12 Start-up with EN1
Load = 0 AEnable and disable delays = default
VOUT settings = default
Figure 8-14 VOUT0,1,2,3: Start-up and Shutdown with Default Register Settings, triggered by EN1.
Load = 10 mA
Figure 8-16 Output Voltage Ripple, PFM Mode
Figure 8-18 Transient from PFM-to-PWM Mode
Load = 4 AVOUT = 1000 mV
VIN stepping 3.3 V ↔ 3.8 V, TR = TF = 10 µs
Figure 8-20 Transient Line Response
Load = 0 A → 2 A → 0 ATR = TF = 400 nsVOUT = 1 V
Figure 8-22 Transient Load Step Response, Forced PWM Mode

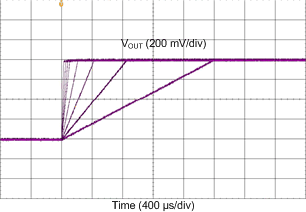

Figure 8-24 VOUT Transition From 0.6 V to 1.4 V With Different Slew Rate Settings
Load = 100 mA
VOUT settings = 1000 mV, 1200 mV, 1800 mV, and 2500 mV
Figure 8-3 Efficiency vs Input Voltage in PFM Mode
Load = 3A
VOUT settings = 1000 mV, 1200 mV, 1800 mV, and 2500 mV
Figure 8-5 Efficiency vs Input Voltage in PWM Mode
VOUT setting = 1000 mV

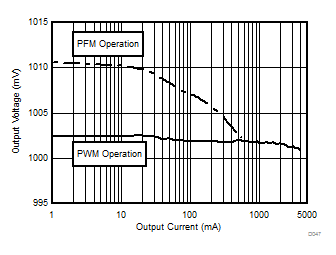

Figure 8-7 Output Voltage vs Load Current in PWM-PFM Mode
Change in Output Voltage from VIN = 3.7 V (%)Load = 1 A
VOUT settings = 1000 mV, 1200 mV, 1800 mV, and 2500 mV

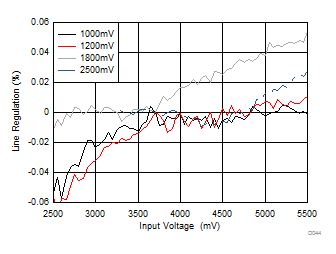

Figure 8-9 DC Line Regulation in PWM Mode
Load = 0 A
Figure 8-11 Start-up with EN1
Figure 8-13 Start-up With Short on Output
Load = 0 A
Figure 8-15 Shutdown with EN1
Load = 200 mA
Figure 8-17 Output Voltage Ripple, Forced PWM Mode
Figure 8-19 Transient from PWM-to-PFM Mode
Load = 0 A → 2 A → 0 ATR = TF = 400 nsVOUT = 1 V
Figure 8-21 Transient Load Step Response, AUTO Mode
Load = 1A → 4 A → 1ATR = TF = 1 µsVOUT = 1 V
Figure 8-23 Transient Load Step Response, Forced PWM Mode

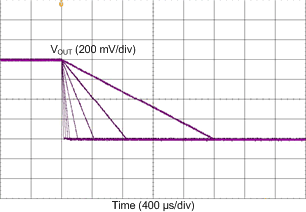

Figure 8-25 VOUT Transition From 1.4 V to 0.6 V With Different Slew Rate Settings
