2.4.8 Stereo Audio Interface [LINE-IN J38_CP, LINE-OUT J41B_CP, J40B_CP]

The EVM supports dual stereo inputs[J38] and 2x stereo line outputs[J40B & J41B]. Note the Common Processor board supports additional audio input/output channels not used with this system. Audio Port Interface assignment in the Common processor board is shown in the below Figure 2-4. The analog audio is supported via the PCM3168A codec, which supports sampling rates up to 96-KHz ADC/192-KHz DAC.

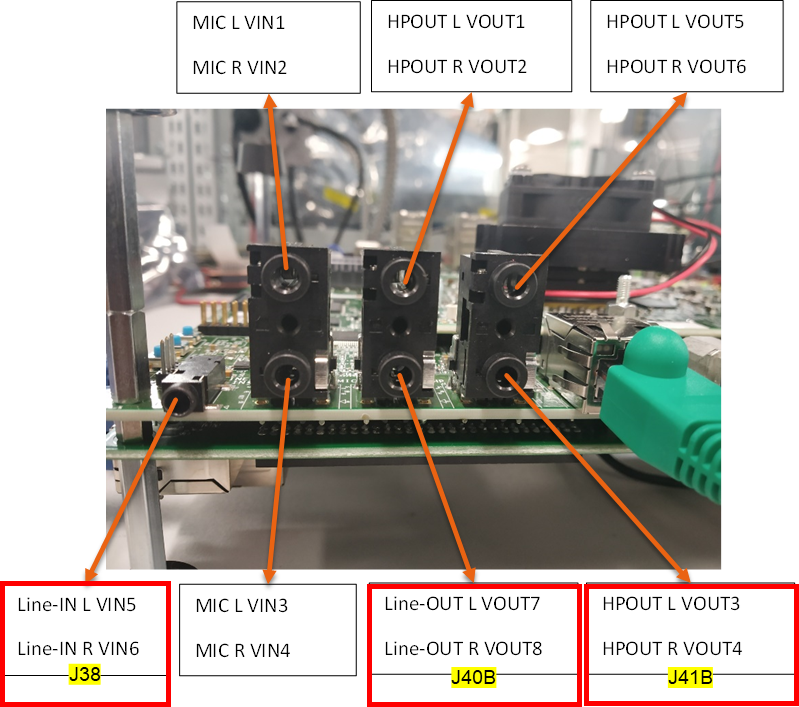

GUID-0CA5F43C-48C7-4EE3-9F03-07BD0AC98B5D-low.png Figure 2-4 Audio Port Interface Assignment [J38,J40B & J41B]
