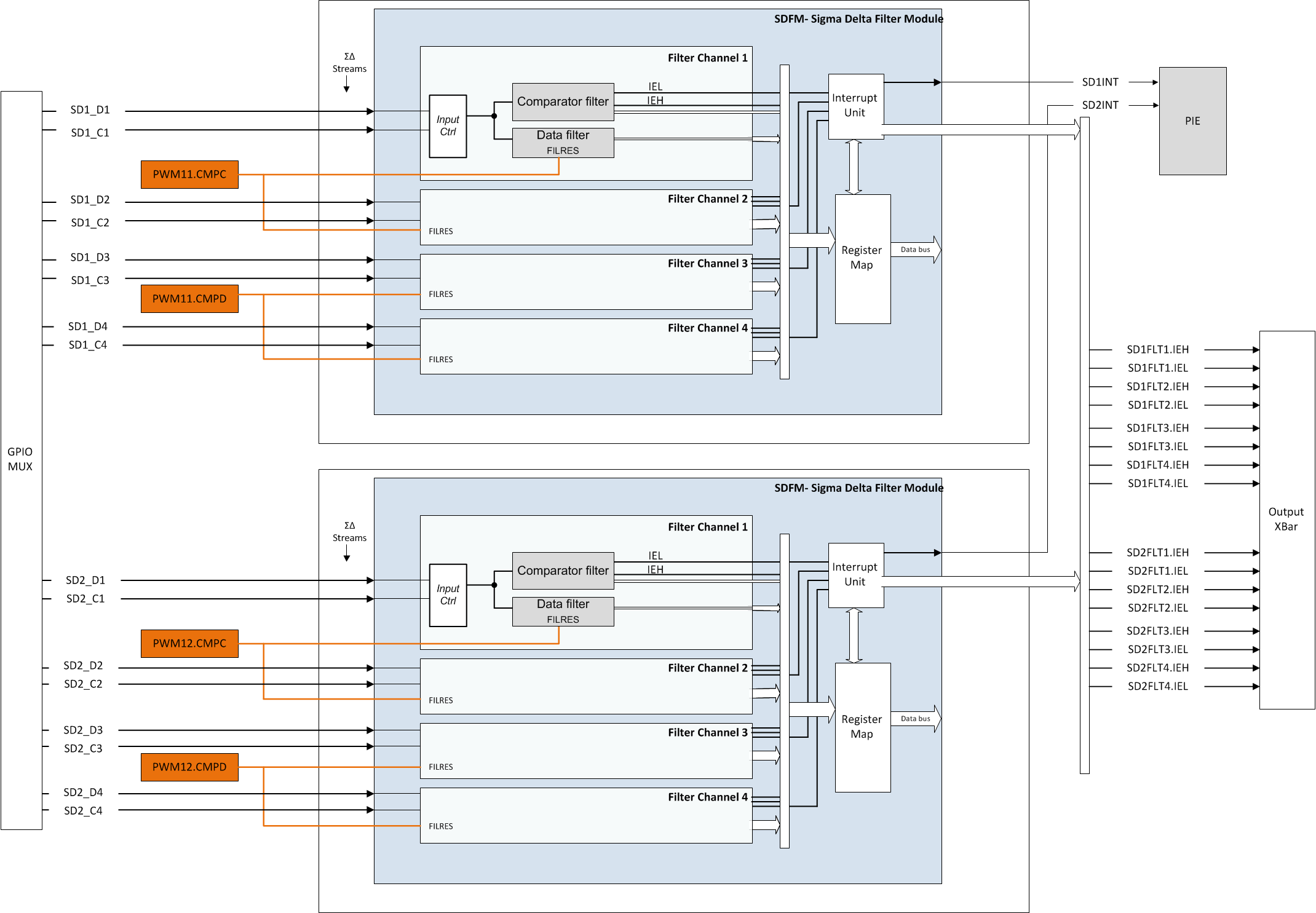

4.9.5 Sigma-Delta Filter Module (SDFM)

The SDFM is a four-channel digital filter designed specifically for current measurement and resolver position decoding in motor control applications. Each channel can receive an independent sigma-delta (ΣΔ) modulated bit stream. The bit streams are processed by four individually programmable digital decimation filters. The filter set includes a fast comparator for immediate digital threshold comparisons for overcurrent and undercurrent monitoring. Figure 4-54 shows a block diagram of the SDFMs.

SDFM features include:

  • Eight external pins per SDFM module:
    • Four sigma-delta data input pins per SDFM module (SDx_Dy, where x = 1 to 2 and y = 1 to 4)
    • Four sigma-delta clock input pins per SDFM module (SDx_Cy, where x = 1 to 2 and y = 1 to 4)
  • Four different configurable modulator clock modes:
    • Modulator clock rate equals modulator data rate
    • Modulator clock rate running at half the modulator data rate
    • Modulator data is Manchester encoded. Modulator clock not required.
    • Modulator clock rate is double that of modulator data rate
  • Four independent configurable comparator units:
    • Four different filter type selection (Sinc1/Sinc2/Sincfast/Sinc3) options available
    • Ability to detect over-value and under-value conditions
    • Comparator Over-Sampling Ratio (COSR) value for comparator programmable from 1 to 32
  • Four independent configurable data filter units:
    • Four different filter type selection (Sinc1/Sinc2/Sincfast/Sinc3) options available
    • Data filter Over-Sampling Ratio (DOSR) value for data filter unit programmable from 1 to 256
    • Ability to enable or disable individual filter module
    • Ability to synchronize all four independent filters of a SDFM module using the Master Filter Enable (MFE) bit or the PWM signals.
  • Filter data can be 16-bit or 32-bit representation
  • PWMs can be used to generate modulator clock for sigma-delta modulators

TMS320F28377D-EP sigma_delta_prs880.gifFigure 4-54 SDFM Block Diagram
