ZHCSHE0 December 2017 TMS320F28377D-EP
The eQEP module interfaces directly with linear or rotary incremental encoders to obtain position, direction, and speed information from rotating machines used in high-performance motion and position-control systems.
Each eQEP peripheral comprises five major functional blocks:

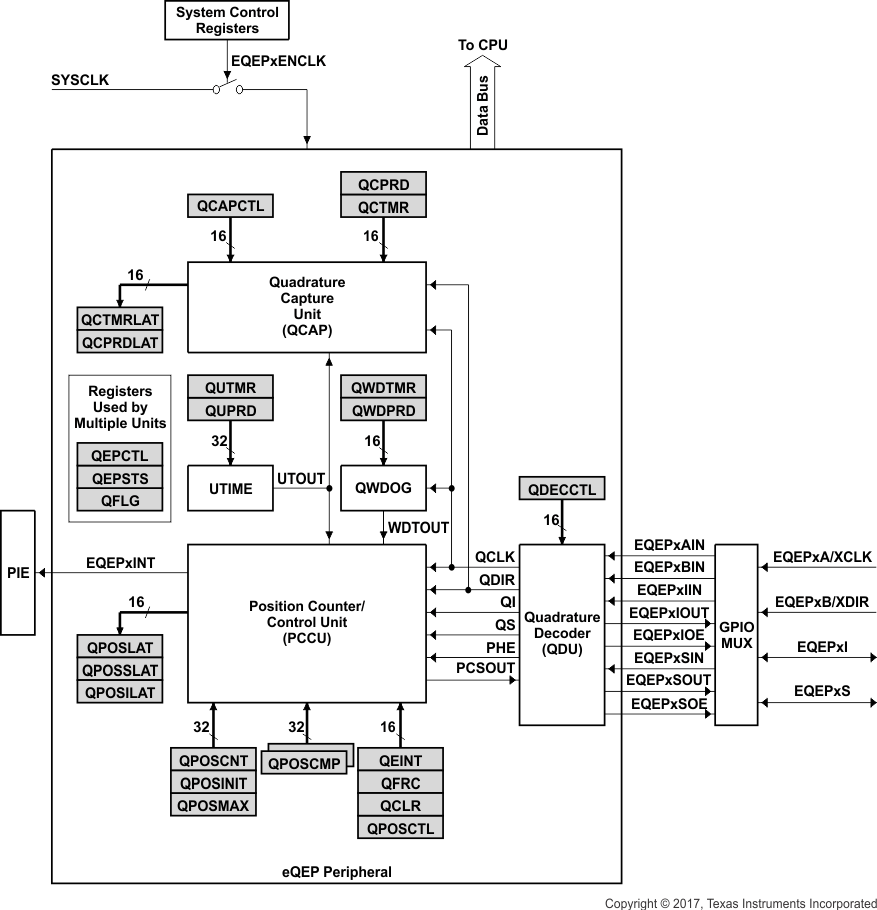

The eQEP peripherals are clocked by PERx.SYSCLK. Figure 4-53 shows the eQEP block diagram.
