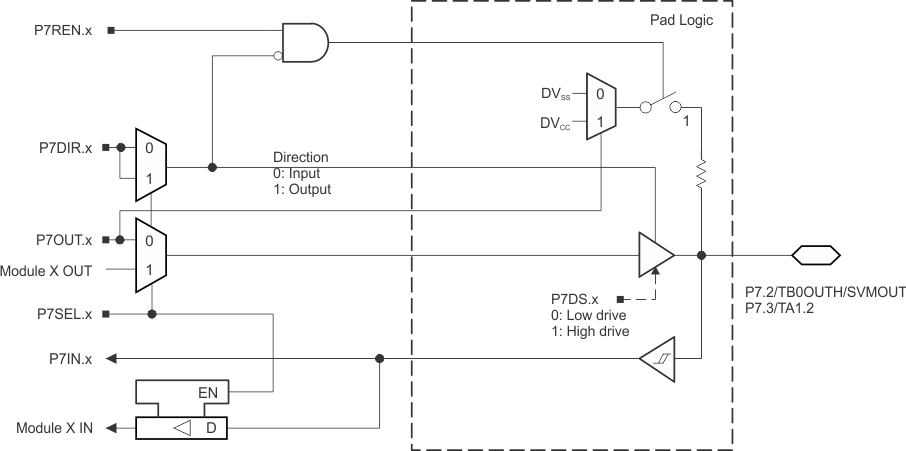

8.9.18.12 Port P7, P7.2 and P7.3, Input/Output With Schmitt Trigger

Table 8-51 Port P7 (P7.2 and P7.3) Pin Functions
PIN NAME (P7.x) x FUNCTION CONTROL BITS/SIGNALS
P7DIR.x P7SEL.x
P7.2/TB0OUTH/SVMOUT 2 P7.2 (I/O) I: 0; O: 1 0
TB0OUTH 0 1
SVMOUT 1 1
P7.3/TA1.2 3 P7.3 (I/O) I: 0; O: 1 0
TA1.CCI2B 0 1
TA1.2 1 1
