8.4.1 Power States

The TPS25730 can operate in one of three different power states: Active, Idle, or Sleep. The Modern Standby mode is a special case of the Idle mode. The functionality available in each state is summarized in Table 8-9. The device automatically transitions between the three power states based on the circuits that are active and required. See Figure 8-26. In the Sleep state, the TPS25730 detects a Type-C connection. Transitioning between the Active mode to Idle mode requires a period of time (T) without any of the following activity:

  • Incoming USB PD message
  • Change in CC status
  • GPIO input event
  • I2C transactions
  • Voltage alert
  • Fault alert

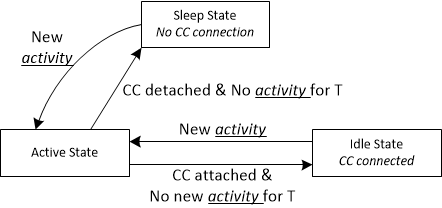

GUID-06228A90-3160-492C-87D5-F894ABEA3204-low.gif Figure 8-26 Flow Diagram for Power States
Table 8-9 Power Consumption States
ACTIVE SINK MODE(3) IDLE SINK MODE MODERN STANDBY SINK MODE(2) SLEEP MODE(1)
PP_HV (TPS25730D) enabled enabled disabled disabled
PP_EXT (TPS25730S) enabled enabled disabled disabled
external CC1 termination Rp 3.0A Rp 3.0A open open
external CC2 termination open open open open
(1) This mode is used for: IVIN_3V3,Sleep
(2) This mode is used for: PMstbySnk
(3) This mode is used for: IVIN_3V3,ActSnk
