CPSW3G RGMII Timing

Table 7-33, Table 7-34, Table 7-35, Figure 7-30, Table 7-36, Table 7-37, and Figure 7-31 present timing conditions, requirements, and switching characteristics for CPSW3G RGMII.

Table 7-33 CPSW3G RGMII Timing Conditions
PARAMETER MIN MAX UNIT
INPUT CONDITIONS
SRI Input slew rate 2.64 5 V/ns
OUTPUT CONDITIONS
CL Output load capacitance 2 20 pF
PCB CONNECTIVITY REQUIREMENTS
td(Trace Mismatch Delay) Propagation delay mismatch across all traces RGMII[x]_RXC, RGMII[x]_RD[3:0], RGMII[x]_RX_CTL 50 ps
RGMII[x]_TXC, RGMII[x]_TD[3:0], RGMII[x]_TX_CTL 50 ps

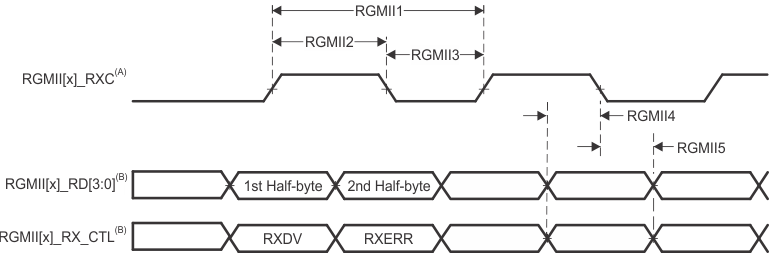

Table 7-34 RGMII[x]_RXC Timing Requirements – RGMII Mode see Figure 7-30
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII1 tc(RXC) Cycle time, RGMII[x]_RXC 10Mbps 360 440 ns
100Mbps 36 44 ns
1000Mbps 7.2 8.8 ns
RGMII2 tw(RXCH) Pulse duration, RGMII[x]_RXC high 10Mbps 160 240 ns
100Mbps 16 24 ns
1000Mbps 3.6 4.4 ns
RGMII3 tw(RXCL) Pulse duration, RGMII[x]_RXC low 10Mbps 160 240 ns
100Mbps 16 24 ns
1000Mbps 3.6 4.4 ns
Table 7-35 RGMII[x]_RD[3:0], and RGMII[x]_RX_CTL Timing Requirements – RGMII Mode see Figure 7-30
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII4 tsu(RD-RXC) Setup time, RGMII[x]_RD[3:0] valid before RGMII[x]_RXC high/low 10Mbps 1 ns
100Mbps 1 ns
1000Mbps 1 ns
tsu(RX_CTL-RXC) Setup time, RGMII[x]_RX_CTL valid before RGMII[x]_RXC high/low 10Mbps 1 ns
100Mbps 1 ns
1000Mbps 1 ns
RGMII5 th(RXC-RD) Hold time, RGMII[x]_RD[3:0] valid after RGMII[x]_RXC high/low 10Mbps 1 ns
100Mbps 1 ns
1000Mbps 1 ns
th(RXC-RX_CTL) Hold time, RGMII[x]_RX_CTL valid after RGMII[x]_RXC high/low 10Mbps 1 ns
100Mbps 1 ns
1000Mbps 1 ns
RGMII[x]_RXC must be externally delayed relative to the data and control pins.
Data and control information is received using both edges of the clocks. RGMII[x]_RD[3:0] carries data bits 3-0 on the rising edge of RGMII[x]_RXC and data bits 7-4 on the falling edge of RGMII[x]_RXC. Similarly, RGMII[x]_RX_CTL carries RXDV on rising edge of RGMII[x]_RXC and RXERR on falling edge of RGMII[x]_RXC.
Figure 7-30 CPSW3G RGMII[x]_RXC, RGMII[x]_RD[3:0], RGMII[x]_RX_CTL Timing Requirements - RGMII Mode
Table 7-36 RGMII[x]_TXC Switching Characteristics – RGMII Mode see Figure 7-31
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII6 tc(TXC) Cycle time, RGMII[x]_TXC 10Mbps 360 440 ns
100Mbps 36 44 ns
1000Mbps 7.2 8.8 ns
RGMII7 tw(TXCH) Pulse duration, RGMII[x]_TXC high 10Mbps 160 240 ns
100Mbps 16 24 ns
1000Mbps 3.6 4.4 ns
RGMII8 tw(TXCL) Pulse duration, RGMII[x]_TXC low 10Mbps 160 240 ns
100Mbps 16 24 ns
1000Mbps 3.6 4.4 ns
Table 7-37 RGMII[x]_TD[3:0] and RGMII[x]_TX_CTL Switching Characteristics – RGMII Mode see Figure 7-31
NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
RGMII9 tosu(TD-TXC) Output setup time(1), RGMII[x]_TD[3:0] valid to RGMII[x]_TXC high/low 10Mbps 1.2 ns
100Mbps 1.2 ns
1000Mbps 1.2 ns
tosu(TX_CTL-TXC) Output setup time(1), RGMII[x]_TX_CTL valid to RGMII[x]_TXC high/low 10Mbps 1.2 ns
100Mbps 1.2 ns
1000Mbps 1.2 ns
RGMII10 toh(TXC-TD) Output hold time(1), RGMII[x]_TD[3:0] valid after RGMII[x]_TXC high/low 10Mbps 1.2 ns
100Mbps 1.2 ns
1000Mbps 1.2 ns
toh(TXC-TX_CTL) Output hold time(1), RGMII[x]_TX_CTL valid after RGMII[x]_TXC high/low 10Mbps 1.2 ns
100Mbps 1.2 ns
1000Mbps 1.2 ns
Output setup/hold times are defining a delay relationship of the transmit data and control outputs relative to the transmit clock output, but this output relationship is being presented as the minimum setup/hold times provided to the attached receiver. This approach matches how the output timing relationships are defined in the RGMII specification.
TXC is delayed internally before being driven to the RGMII[x]_TXC pin. This internal delay is always enabled.
Data and control information is received using both edges of the clocks. RGMII[x]_TD[3:0] carries data bits 3-0 on the rising edge of RGMII[x]_TXC and data bits 7-4 on the falling edge of RGMII[x]_TXC. Similarly, RGMII[x]_TX_CTL carries TXEN on rising edge of RGMII[x]_TXC and TXERR on falling edge of RGMII[x]_TXC.

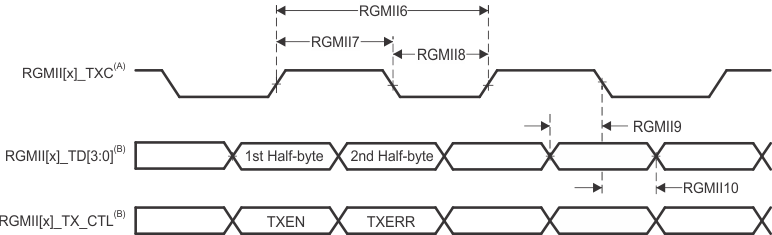

Figure 7-31 CPSW3G RGMII[x]_TXC, RGMII[x]_TD[3:0], and RGMII[x]_TX_CTL Switching Characteristics - RGMII Mode
