9.1.3 CCS IDE

The latest Code Composer Studio™ (CCS) installer can be downloaded here. CCS is a free tool provided by TI, which enables developers to work with various TI devices. The SDK supports CCS version 6.2.0 or later.

  • Double click on the installer and follow the instructions to install the tool.
  • TI recommends using the default installation directory.
  • Ensure to select the SimpleLink CC3x Wireless MCUs option for processor support as shown in Figure 31.

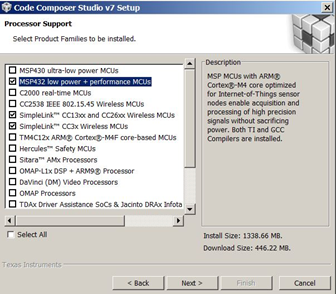

    • CC32xx_devices_SWRU473.pngFigure 31. CCS Setup – Choosing CC32xx SimpleLink Devices
  • To use a debug probe, select TI XDS Debug Probe Support as shown in Figure 32.

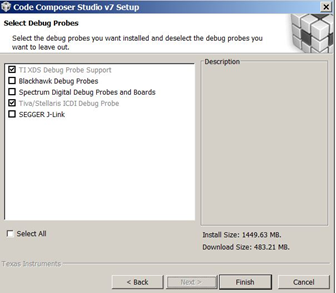

    • CCS_XDS_install_SWRU473.pngFigure 32. CCS Setup – XDS Installation

NOTE

The installation may take a while to complete, depending on the number of selections and your network speed because CCS must download the files. Once the installation is finished, start CCS and users will be prompted to choose a workspace folder (the folder where the project files will reside).
