9.1.3.1 Add CCS Support for FreeRTOSv9

See the following instructions if users want to use FreeRTOS.

  1. Download FreeRTOS version 9.
  2. Install the software in the C: drive.
  3. Copy the content of the patch (CCS folder) from <SDK install path>\tools\cc32xx_tools\FreeRTOS_patch\CCS and paste it to <FreeRTOS install path>\FreeRTOS\Source\portable\CCS.
  4. Run CCS.
  5. Choose Window → Preferences → Code Composer Studio → Build → Variables → Add (see Figure 33).

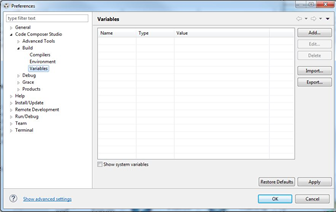

    6. FreeRTOS_01.pngFigure 33. FreeRTOS Support in CCS (1 of 2)
  6. Fill the Variable field with FREERTOS_INSTALL_DIR.
  7. Change the Type to directory.
  8. Change the Value to the <FreeRTOS install path> and then press OK (see Figure 34).
    9. FreeRTOS_02.pngFigure 34. FreeRTOS Support in CCS (2 of 2)
