6.1 Pin Diagrams

The 179-ball ZHH ball grid array (BGA) terminal assignments are shown in Figure 6-1 through Figure 6-4. The 256-ball ZFE plastic BGA terminal assignments are shown in Figure 6-5 through Figure 6-8. Table 6-1 describes the function(s) of each pin.

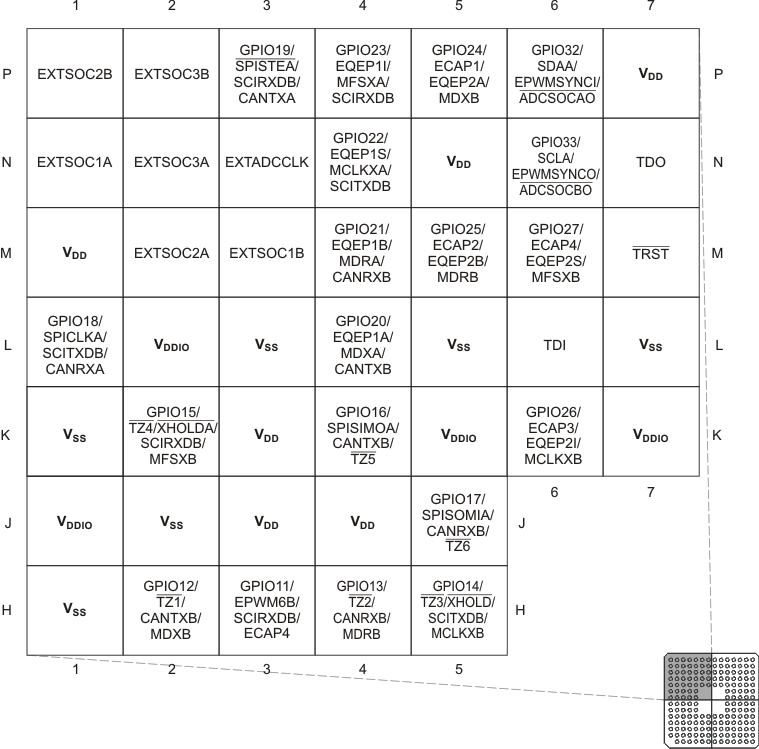

GUID-6A76C949-FFDB-49BC-81E7-5AD97FB3DA35-low.gifFigure 6-1 C2834x 179-Ball ZHH MicroStar BGA Upper-Left Quadrant (Bottom VIew)

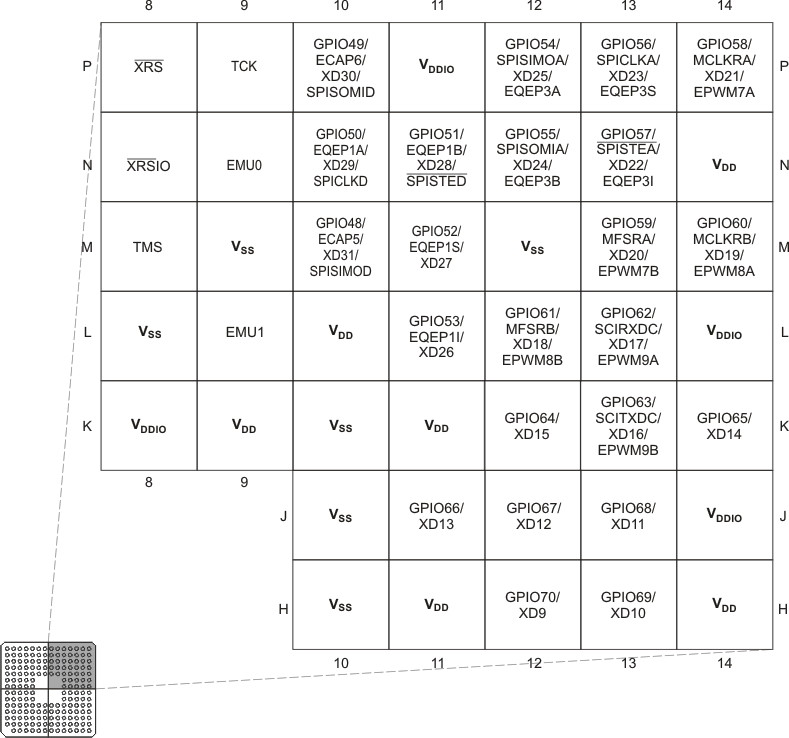

GUID-31CDF648-B8D7-4DBB-BCDA-70CF55BA754C-low.gifFigure 6-2 C2834x 179-Ball ZHH MicroStar BGA Upper-Right Quadrant (Bottom View)

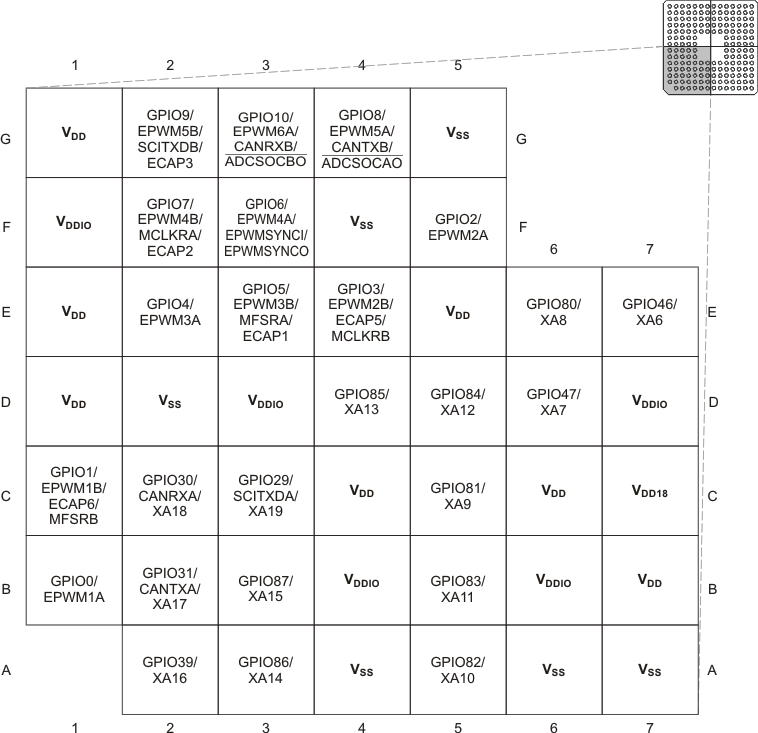

GUID-55E06A0A-6CEA-434E-B9C3-3EC1D75CFB05-low.gifFigure 6-3 C2834x 179-Ball ZHH MicroStar BGA Lower-Left Quadrant (Bottom View)

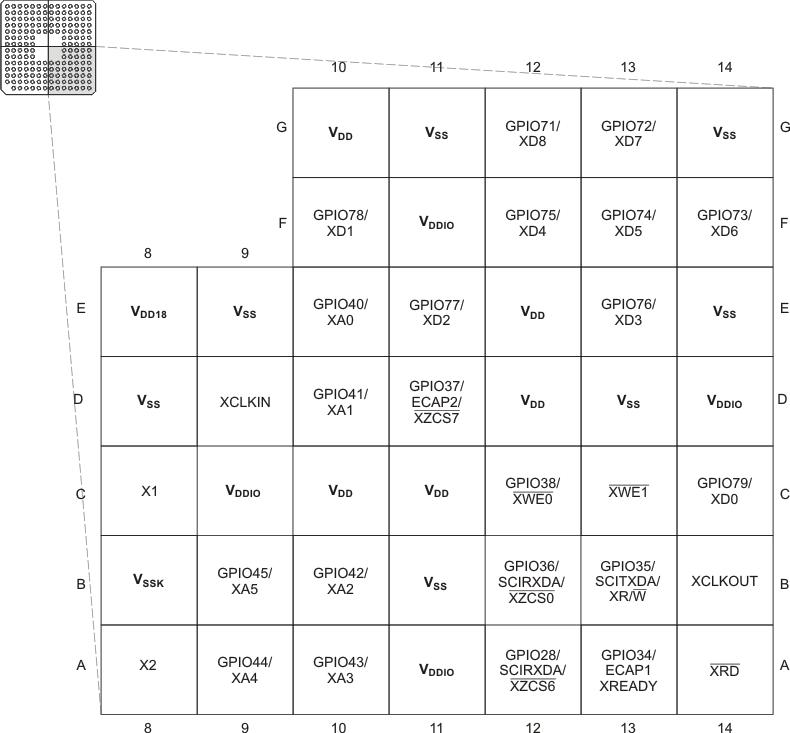

GUID-2B8392C2-D5F6-4EB4-9C44-2B3773C717E4-low.gifFigure 6-4 C2834x 179-Ball ZHH MicroStar BGA Lower-Right Quadrant (Bottom View)

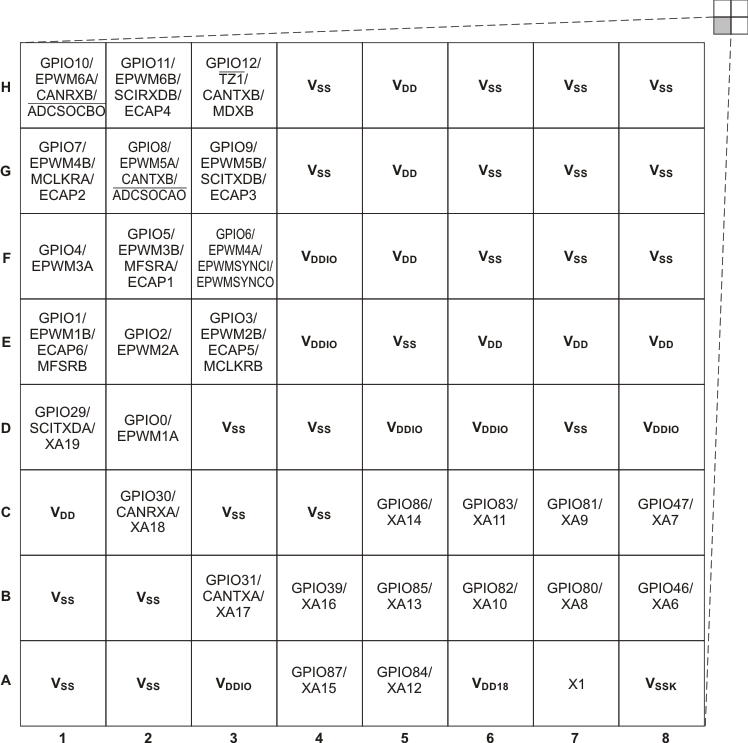

GUID-64B4F560-6364-41DC-BBBD-54ADF14D0836-low.gifFigure 6-5 C2834x 256-Ball ZFE Plastic BGA Upper-Left Quadrant (Bottom View)
GUID-2CDDFA8B-F8E8-485C-A3FF-3A082A1A4F7D-low.gifFigure 6-6 C2834x 256-Ball ZFE Plastic BGA Upper-Right Quadrant (Bottom View)
GUID-6F227B99-C505-4FDB-887B-5E50D53F79D3-low.gifFigure 6-7 C2834x 256-Ball ZFE Plastic BGA Lower-Left Quadrant (Bottom View)

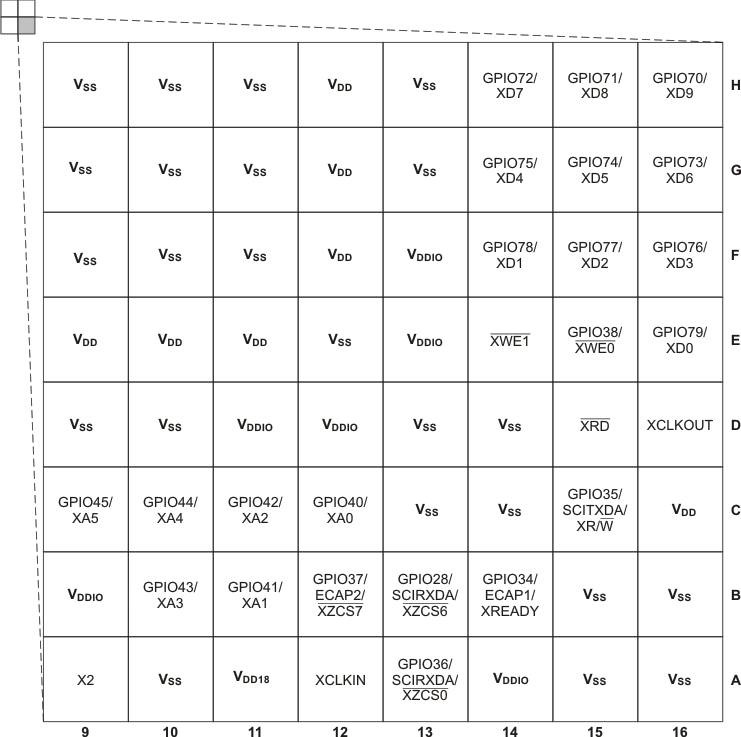

GUID-B84F9F50-1714-4CFE-BE9D-4000027976CF-low.gifFigure 6-8 C2834x 256-Ball ZFE Plastic BGA Lower-Right Quadrant (Bottom View)
