7.9.4.6.1.2 McBSP Switching Characteristics(1) (2)
NO.PARAMETERMINMAXUNIT
M1tc(CKRX)Cycle time, CLKR/XCLKR/X int2Pns
M2tw(CKRXH)Pulse duration, CLKR/X highCLKR/X intD – 2 (3)D + 2 (3)ns
M3tw(CKRXL)Pulse duration, CLKR/X lowCLKR/X intC – 2 (3)C + 2 (3)ns
M4td(CKRH-FRV)Delay time, CLKR high to internal FSR validCLKR int04ns
CLKR ext320
M5td(CKXH-FXV)Delay time, CLKX high to internal FSX validCLKX int04ns
CLKX ext320
M6tdis(CKXH-DXHZ)Disable time, CLKX high to DX high impedance following last data bitCLKX int8ns
CLKX ext14
M7td(CKXH-DXV)Delay time, CLKX high to DX valid.CLKX int4ns
This applies to all bits except the first bit transmitted.CLKX ext20
Delay time, CLKX high to DX validDXENA = 0CLKX int4
CLKX ext20
Only applies to first bit transmitted when in Data Delay 1 or 2 (XDATDLY=01b or 10b) modesDXENA = 1CLKX intP + 4
CLKX extP + 20
M8ten(CKXH-DX)Enable time, CLKX high to DX drivenDXENA = 0CLKX int0ns
CLKX ext10
Only applies to first bit transmitted when in Data Delay 1 or 2 (XDATDLY=01b or 10b) modesDXENA = 1CLKX intP
CLKX extP + 10
M9td(FXH-DXV)Delay time, FSX high to DX validDXENA = 0FSX int4ns
FSX ext16
Only applies to first bit transmitted when in Data Delay 0 (XDATDLY=00b) mode.DXENA = 1FSX intP + 4
FSX extP + 16
M10ten(FXH-DX)Enable time, FSX high to DX drivenDXENA = 0FSX int0ns
FSX ext6
Only applies to first bit transmitted when in Data Delay 0 (XDATDLY=00b) modeDXENA = 1FSX intP
FSX extP + 6
(1) Polarity bits CLKRP = CLKXP = FSRP = FSXP = 0. If the polarity of any of the signals is inverted, then the timing references of that signal are also inverted.
(2) 2P = 1/CLKG in ns.
(3) C = CLKRX low pulse width = P
D = CLKRX high pulse width = P
GUID-D7D1A92A-743A-4835-A182-C6DF0A8CABF2-low.gifFigure 7-20 McBSP Receive Timing

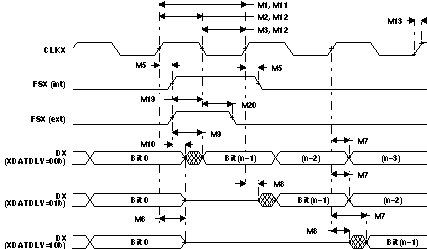

GUID-DC3E7701-0310-4BCD-80D8-4563742A581F-low.gifFigure 7-21 McBSP Transmit Timing
