8.29 12-Bit DAC, Linearity Specifications

over recommended operating free-air temperature range (unless otherwise noted) (see Figure 8-21)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
Resolution 12-bit monotonic 12 bits
INL Integral nonlinearity(1) Vref = 1.5 V,
DAC12AMPx = 7, DAC12IR = 1		 2.2 V ±2.0 ±8.0 LSB
Vref = 2.5 V,
DAC12AMPx = 7, DAC12IR = 1		 3 V
DNL Differential nonlinearity(1) Vref = 1.5 V,
DAC12AMPx = 7, DAC12IR = 1		 2.2 V ±0.4 ±1.0 LSB
Vref = 2.5 V,
DAC12AMPx = 7, DAC12IR = 1		 3 V
EO Offset voltage without calibration(1) (2) Vref = 1.5 V,
DAC12AMPx = 7, DAC12IR = 1		 2.2 V ±21 mV
Vref = 2.5 V,
DAC12AMPx = 7, DAC12IR = 1		 3 V
Offset voltage with calibration(1) (2) Vref = 1.5 V,
DAC12AMPx = 7, DAC12IR = 1		 2.2 V ±2.5
Vref = 2.5 V,
DAC12AMPx = 7, DAC12IR = 1		 3 V
dE(O)/dT Offset error temperature coefficient(1) 2.2 V, 3 V ±30 µV/°C
EG Gain error(1) VREF = 1.5 V 2.2 V ±3.5 %FSR
VREF = 2.5 V 3 V
dE(G)/dT Gain temperature coefficient(1) 2.2 V, 3 V 10 ppm of
FSR/°C
tOffset Cal Time for offset calibration(3) DAC12AMPx = 2 2.2 V, 3 V 100 ms
DAC12AMPx = 3, 5 32
DAC12AMPx = 4, 6, 7 6
(1) Parameters calculated from the best-fit curve from 0x0A to 0xFFF. The best-fit curve method is used to deliver coefficients "a" and "b" of the first-order equation: y = a + b × x. VDAC12_xOUT = EO + (1 + EG) × (VeREF+ / 4095) × DAC12_xDAT, DAC12IR = 1.
(2) The offset calibration works on the output operational amplifier. Offset Calibration is triggered setting bit DAC12CALON.
(3) The offset calibration can be done if DAC12AMPx = {2, 3, 4, 5, 6, 7}. The output operational amplifier is switched off with DAC12AMPx = {0, 1}. It is recommended that the DAC12 module be configured prior to initiating calibration. Port activity during calibration may affect accuracy and is not recommended.

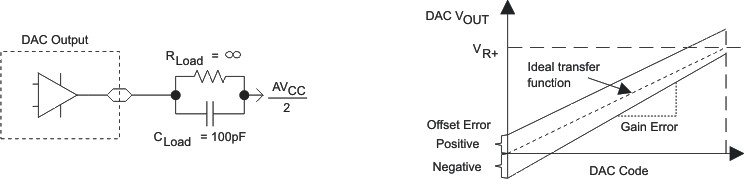

GUID-AEB4A214-7B76-4D1B-8A13-B2A4B93BA17C-low.gif Figure 8-21 Linearity Test Load Conditions and Gain/Offset Definition

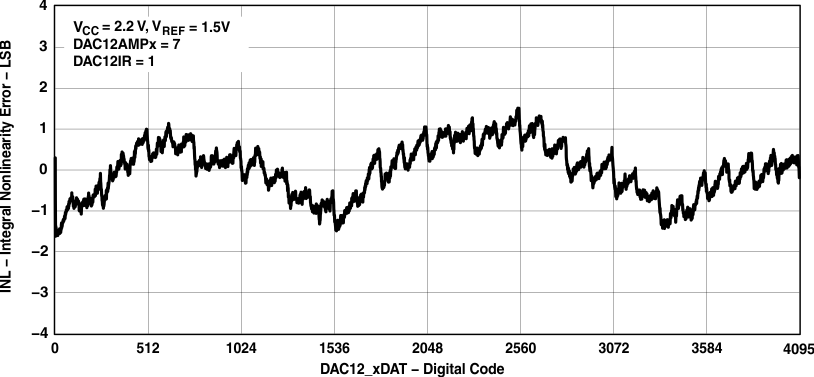

GUID-7F4896EF-3541-434C-BA5E-0C81C6641B33-low.gif Figure 8-22 Typical INL Error vs Digital Input Data
GUID-70D7CDC6-632B-4A63-A18E-76FBDBF07C60-low.gif Figure 8-23 Typical DNL Error vs Digital Input Data
