8.4.8.1 Read-Data-Continuous Mode

In the read-data-continuous mode, the conversion data are shifted out directly from the device without the need for sending a read command. This mode is the default mode at power-on. This mode is also enabled by the RDATAC command. When DRDY goes low, indicating that new data are available, the MSB of data appears on DOUT, as shown in Figure 53. The data are normally read on the rising edge of SCLK, at the occurrence of the first falling edge of SCLK, DRDY returns high. After 32 bits of data have been shifted out, further SCLK transitions cause DOUT to go low. If desired, the read operation may be stopped at 24 bits. The data shift operation must be completed within four CLK periods before DRDY falls again or the data may be corrupted.

When a SDATAC command is issued, the DRDY output is blocked but the ADS1283 continues conversions. In stop continuous mode, the data can only be read by command.

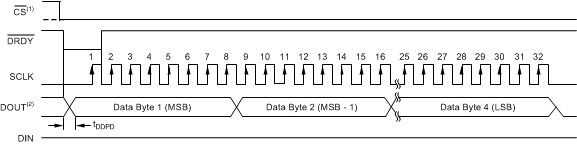

ADS1283 ai_rd_cont_bas565.gif
1. DOUT is in tristate when CS is high. CS can be tied low. See Figure 1 for CS low to valid DOUT propagation time.
Figure 53. Read Data Continuous

Table 17. Timing Data for Figure 53

PARAMETER MIN TYP MAX UNIT
tDDPD DRDY to valid MSB on DOUT propagation delay(1) 100 ns
(1) DOUT is in tristate when CS is high. Load on DOUT = 20 pF || 100 kΩ.
