6.3.1.7 Programming the Current-Limit Threshold

The over-current threshold is user programmable via an external resistor. The TPS65286 uses an internal regulation loop to provide a regulated voltage reference on the RLIM terminal. The current-limit threshold is proportional to the current sourced out of the RSET terminal. A resistor with 1% accuracy is used between 10 kΩ ≤ RSET ≤ 232 kΩ to ensure stability of the internal regulation loop. Equation 1 and Figure 23 can be used to calculate current limiting threshold for a given external resistor value.

Current-limit threshold equation (IOS):

Equation 1. IOS = 27.465 x (RSET)-1.04

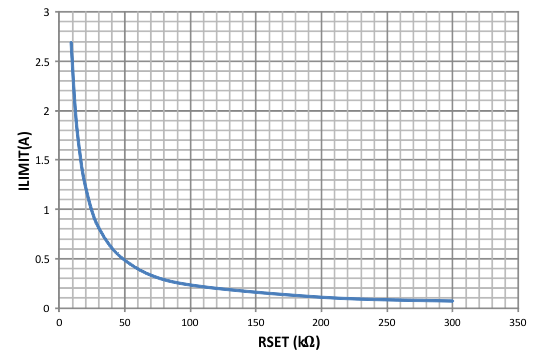

TPS65286 Curr_Lim_Thresh_vs_RLIM_SLVSCA4.gifFigure 23. Current-Limit Threshold IOS vs RLIM
