5.6 Typical Characteristics

TA = 25°C, VIN = 24 V, VOUT = 5 V, fSW = 500 kHz, RnFAULT = 100 kΩ (unless otherwise noted)
TPS65286 C019_SLVSCA4.png
VOUT = 5 V
Figure 4. Buck Efficiency
TPS65286 C018_SLVSCA4.png
VOUT = 5 V

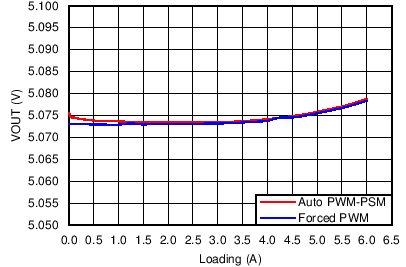

Figure 6. Buck Line Regulation

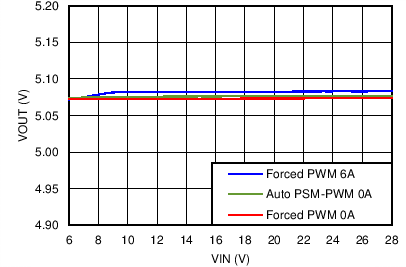

TPS65286 C013_SLVSCA4.png
VOUT = 5 V
Figure 8. Buck Load Regulation
TPS65286 C011_SLVSCA4.png
Figure 10. IIN (Without Switching) vs Temperature
TPS65286 C021_SLVSCA4.png

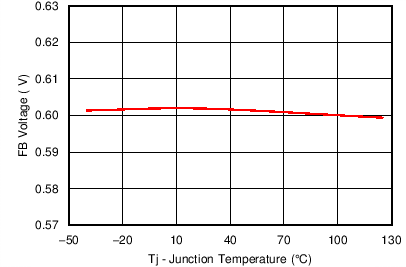

Figure 12. Reference Voltage vs Temperature
TPS65286 C002_slvscg1.gif
Figure 14. EN UVLO Start vs Temperature
TPS65286 C006_SLVSCA4.png

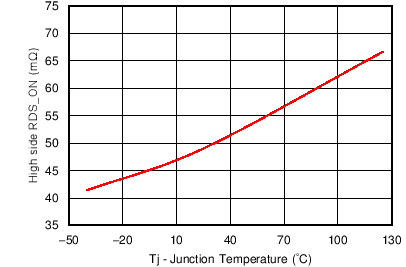

Figure 16. High-Side RDS_ON vs Temperature
TPS65286 C004_SLVSCA4.png

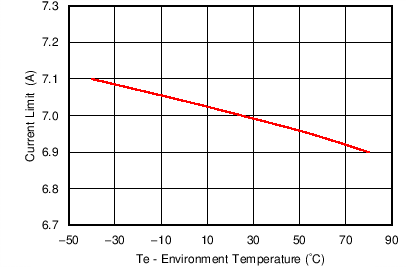

Figure 18. Buck DC Max IOUT vs Temperature

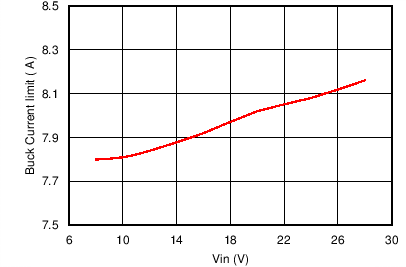

TPS65286 C008_SLVSCA4.png
RLIMIT = 120 kΩ
Figure 20. Buck Current Limit vs VIN

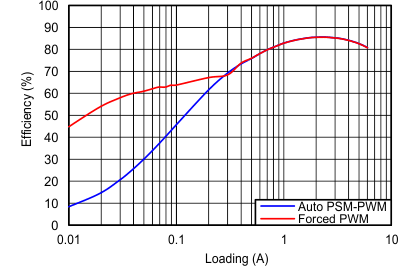

TPS65286 C003_SLVSCA4.gif
VOUT = 2.5 V
Figure 5. Buck Efficiency
TPS65286 C017_SLVSCA4.png
VOUT = 2.5 V

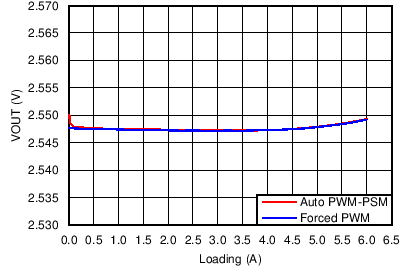

Figure 7. Buck Line Regulation
TPS65286 C014_SLVSCA4.png
VOUT = 2.5 V
Figure 9. Buck Load Regulation

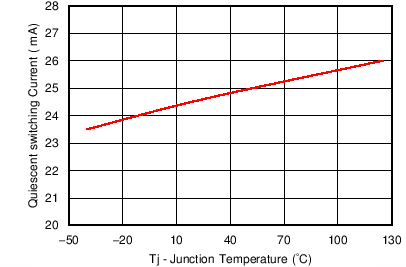

TPS65286 C012_SLVSCA4.png
Figure 11. IIN (With Buck Switching) vs Temperature
TPS65286 C010_SLVSCA4.png
Figure 13. Oscillator Frequency vs Temperature
TPS65286 C001_slvscg1.gif
Figure 15. EN UVLO Stop vs Temperature
TPS65286 C007_SLVSCA4.png

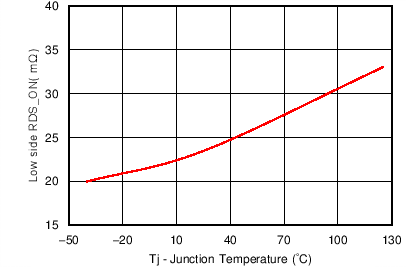

Figure 17. Low-Side RDS_ON vs Temperature
TPS65286 C005_SLVSCA4.png

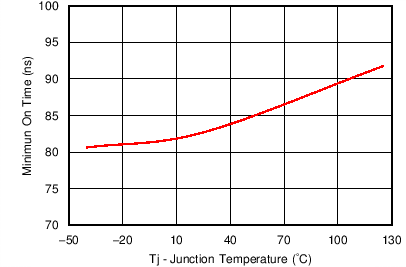

Figure 19. Minimum On Time vs Temperature
TPS65286 C009_SLVSCA4.png
RSET = 9.1 kΩ

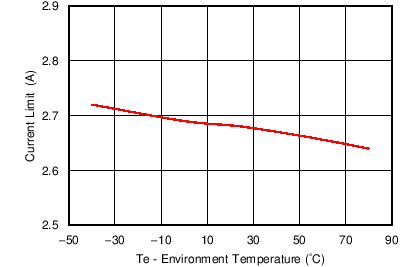

Figure 21. Power Switch Current Limit vs Temperature
