7.3.2.2.1 Free Running Mode

In free running mode the DLPC3470 controller generates an internal synchronization signal to display pre-stored patterns. User sends an I2C command to instruct the DLPC3470 controller to download the 1D patterns from flash memory into DLPC3470 controller’s internal memory and begin display of the 1D patterns.

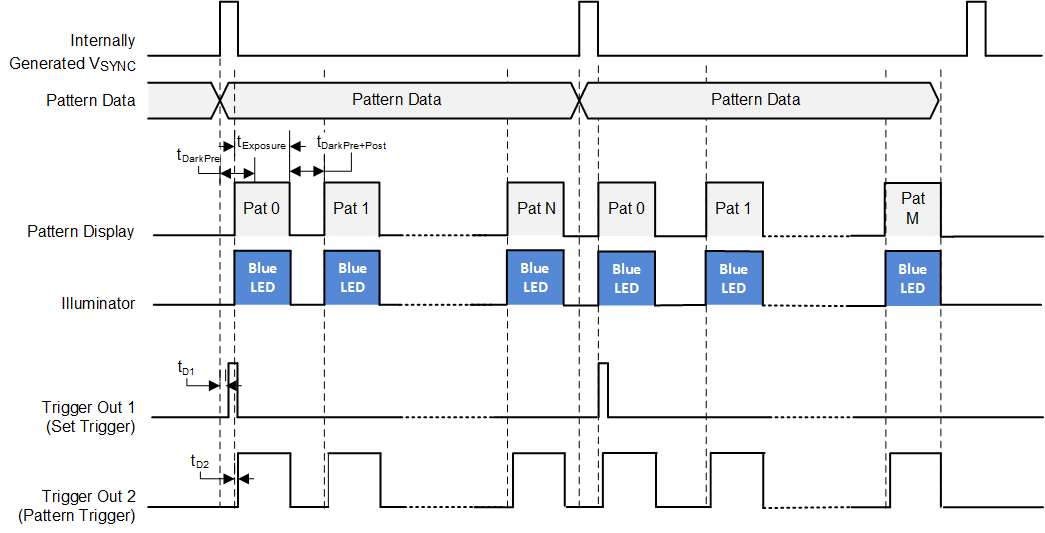

GUID-20201214-CA0I-2Q9T-HSZF-L9HDVDJFV96G-low.gif Figure 7-14 Free Running Mode

  • The device displays multiple 1D patterns within an internally-generated VSYNC period. tExposure (exposure time), tDarkPre and tDarkPost (dark time) are equal for all the 1D patterns within one internally generated VSYNC frame.
  • The blue LED is configured to be on for each pattern.
  • TRIG_OUT_1 (Frame Trigger) is configured active high polarity and will have a minimum pulse width of 20 microseconds. TRIG_OUT_1 delay (tD1) is configured with respect to internally generated VSYNC.
  • TRIG_OUT_2 (Pattern Trigger) is configured active high polarity and stays active during the pattern exposure. TRIG_OUT_2 delay (tD2) is configured with reference to the start of each pattern.
  • VSYNC is generated internally according to different sets of patterns stored in the SPI flash memory.
