ZHCSHX0C March 2018 – January 2023 DS90UB936-Q1
PRODUCTION DATA

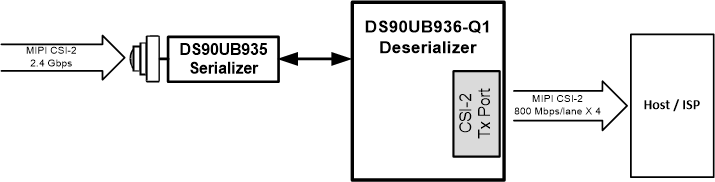

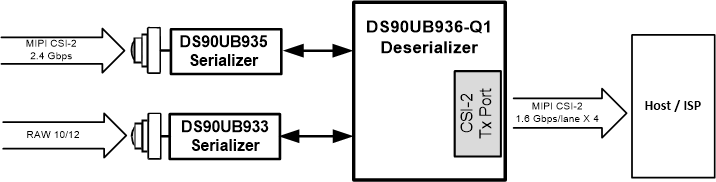

The DS90UB936-Q1 has two input ports that are capable of operating independently. Two sensors can be connected simultaneously (#SNLS5067791), or a single sensor can be connected to either Rx input port 0 or Rx input port 1 (#SNLS5067084). The DS90UB936-Q1 deserializer is capable of receiving serialized sensor data from one or two independent video datastreams and aggregating into a single CSI-Tx output. Alternatively, Rx Data can be replicated onto two 2-Lane CSI-2 outputs for interconnect to two seperate CSI-2 Rx inputs for parallel downstream processing.
