Table 5-37 Current Consumption for Different ADC Configurations (at 25-MHz ADCCLK)(1)(2)

ADC OPERATING MODE CONDITIONS VDDA18 VDDA3.3 UNIT
Mode A (Operational Mode):
  • BG and REF enabled
  • PWD disabled
 30 2 mA
Mode B:
  • ADC clock enabled
  • BG and REF enabled
  • PWD enabled
 9 0.5 mA
Mode C:
  • ADC clock enabled
  • BG and REF disabled
  • PWD enabled
 5 20 μA
Mode D:
  • ADC clock disabled
  • BG and REF disabled
  • PWD enabled
 5 15 μA
(1) Test Conditions:
SYSCLKOUT = 100 MHz
ADC module clock = 25 MHz
ADC performing a continuous conversion of all 16 channels in Mode A
(2) VDDA18 includes current into VDD1A18 and VDD2A18. VDDA3.3 includes current into VDDA2 and VDDAIO.

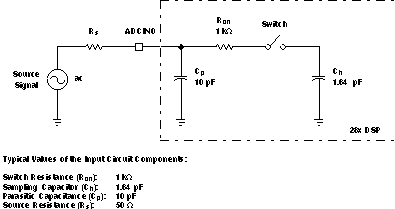

TMS320F28044 ls_adcanin_prs357.gifFigure 5-21 ADC Analog Input Impedance Model
