7.3 Recommended Operating Conditions

Typical values are specified at VCC = 3.3 V and TA = 25°C (unless otherwise noted)
MINNOMMAXUNIT
VCCSupply voltage during program execution and flash programming
(AVCC = DVCC1/2/3/4 = DVCC)(1)(2)		1.83.6V
VSSSupply voltage (AVSS = DVSS1/2/3/4 = DVSS)0V
TAOperating free-air temperatureI version–4085°C
TJOperating junction temperatureI version–4085°C
CVCORERecommended capacitor at VCORE(3)470nF
CDVCC/CVCORECapacitor ratio of DVCC to VCORE10
fSYSTEMProcessor frequency (maximum MCLK frequency)(4) (5) (see Figure 7-1)PMMCOREVx = 0, 1.8 V ≤ VCC ≤ 3.6 V08.0MHz
PMMCOREVx = 1, 2.0 V ≤ VCC ≤ 3.6 V012.0
PMMCOREVx = 2, 2.2 V ≤ VCC ≤ 3.6 V020.0
PMMCOREVx = 3, 2.4 V ≤ VCC ≤ 3.6 V025.0
(1) TI recommends powering AVCC and DVCC from the same source. A maximum difference of 0.3 V between AVCC and DVCC can be tolerated during power up and operation.
(2) The minimum supply voltage is defined by the supervisor SVS levels when it is enabled. See the Section 7.23 threshold parameters for the exact values and further details.
(3) A capacitor tolerance of ±20% or better is required.
(4) The MSP430 CPU is clocked directly with MCLK. Both the high and low phase of MCLK must not exceed the pulse duration of the specified maximum frequency.
(5) Modules may have a different maximum input clock specification. See the specification of the respective module in this data sheet.

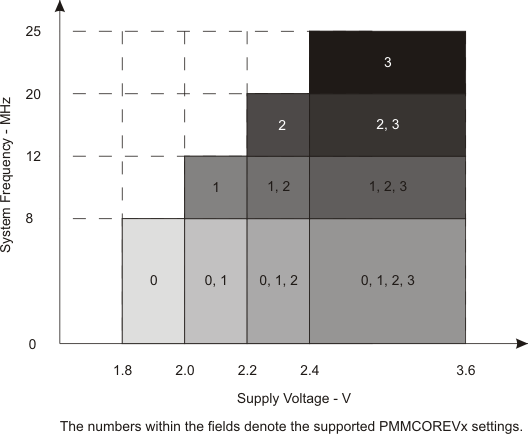

GUID-A8AE51BB-7E47-4780-90BD-825C88060CA7-low.gifFigure 7-1 Frequency vs Supply Voltage
