7.14 Typical Characteristics – Outputs, Reduced Drive Strength (PxDS.y = 0)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

GUID-2D6CCFCE-EBF8-498E-A62E-965E0B1A31AD-low.gifFigure 7-6 Typical Low-Level Output Current vs Low-Level Output Voltage
GUID-1003F1DE-46CA-42A2-BB62-249AF8BCAED7-low.gifFigure 7-8 Typical High-Level Output Current vs High-Level Output Voltage
GUID-E04FE57E-8E42-4DC7-A4CA-5E23D55C224E-low.gifFigure 7-7 Typical Low-Level Output Current vs Low-Level Output Voltage

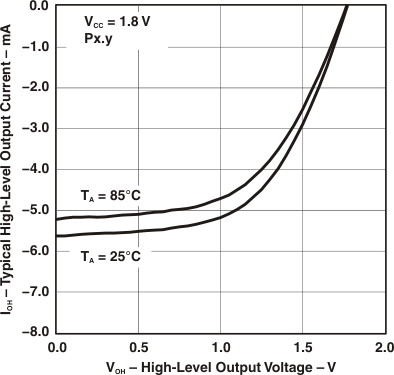

GUID-DC261360-83F0-4CBD-85FB-244F6172BA5E-low.gifFigure 7-9 Typical High-Level Output Current vs High-Level Output Voltage
