7.13 Typical Characteristics – Outputs, Full Drive Strength (PxDS.y = 1)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

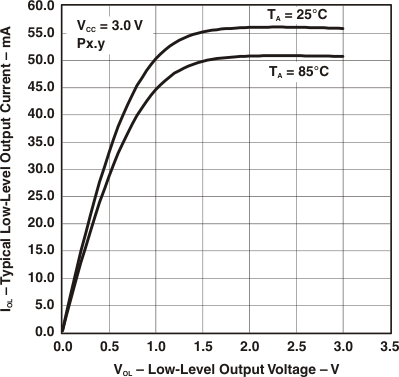

GUID-8623FC09-A81E-459F-ADC3-069A43234536-low.gifFigure 7-2 Typical Low-Level Output Current vs Low-Level Output Voltage

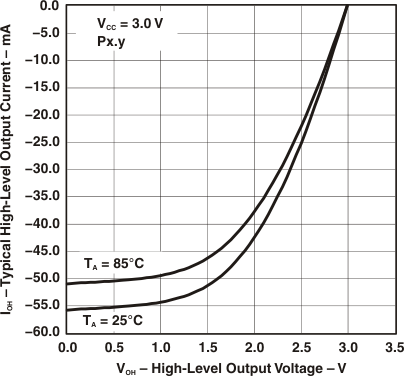

GUID-5109648A-3813-422B-9F25-3D6E567C85E7-low.gifFigure 7-4 Typical High-Level Output Current vs High-Level Output Voltage

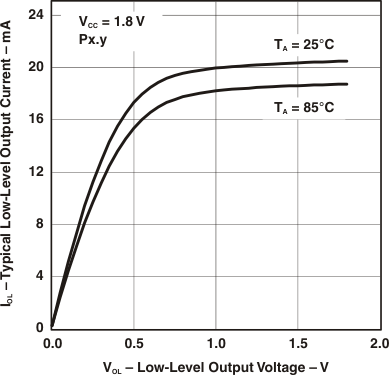

GUID-A26E7643-FD9A-4309-A753-7879CB6E89BC-low.gifFigure 7-3 Typical Low-Level Output Current vs Low-Level Output Voltage

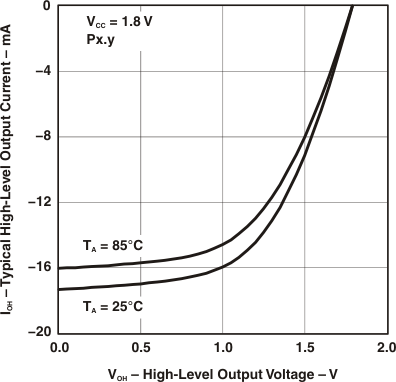

GUID-68DA0708-C691-400B-B839-564E026E65DB-low.gifFigure 7-5 Typical High-Level Output Current vs High-Level Output Voltage
