4.6.3.34 SWPBX
| SWPBX.A | Swap bytes of lower word | ||
| SWPBX.[W] | Swap bytes of word | ||
| Syntax | SWPBX.A dst | ||
| SWPBX dst or SWPBX.W dst | |||
| Operation | dst.15:8 ↔ dst.7:0 | ||
| Description | Register mode: Rn.15:8 are swapped with Rn.7:0. When the .A extension is used, Rn.19:16 are unchanged. When the .W extension is used, Rn.19:16 are cleared. | ||
| Other modes: When the .A extension is used, bits 31:20 of the destination address are cleared, bits 19:16 are left unchanged, and bits 15:8 are swapped with bits 7:0. When the .W extension is used, bits 15:8 are swapped with bits 7:0 of the addressed word. | |||
| Status Bits | Status bits are not affected. | ||
| Mode Bits | OSCOFF, CPUOFF, and GIE are not affected. | ||
| Example | Exchange the bytes of RAM address-word EDE | ||
MOVX.A #23456h,&EDE ; 23456h -> EDE
SWPBX.A EDE ; 25634h -> EDE
| Example | Exchange the bytes of R5 | ||
MOVA #23456h,R5 ; 23456h -> R5
SWPBX.W R5 ; 05634h -> R5
Figure 4-55 Swap Bytes SWPBX.A Register Mode

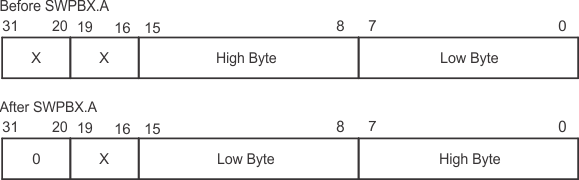

Figure 4-56 Swap Bytes SWPBX.A In Memory

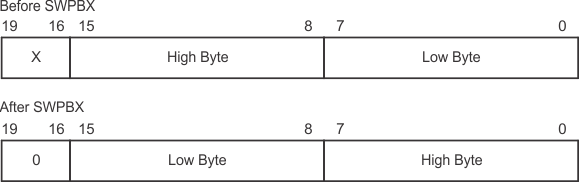

Figure 4-57 Swap Bytes SWPBX[.W] Register Mode

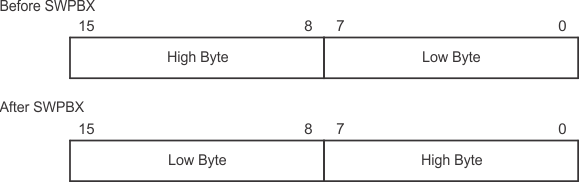

Figure 4-58 Swap Bytes SWPBX[.W] In Memory
