22.2.3.1 CIC7 Filter
Figure 22-4 shows the structure of a CIC7 filter, which is selected when SDHSCTL1.OSR = 10.

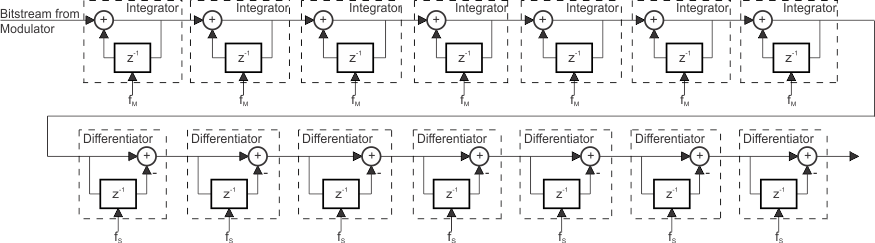

Figure 22-4 CIC7 Filter Structure The transfer function is described in the z-domain by Equation 11.
The transfer function is described in the frequency domain by Equation 12.
- OSR = The ratio of the modulator frequency fM to the sample frequency fS
where
Figure 22-5 shows the filter frequency response beyond fS (normalized), and Figure 22-6 shows the filter frequency response within fS. The first filter notch is always at fS = fM / OSR. The digital filter for the SDHS converter completes the decimation of the digital bit stream and outputs the new conversion result to the SDHSDT register at the sample frequency, fS.

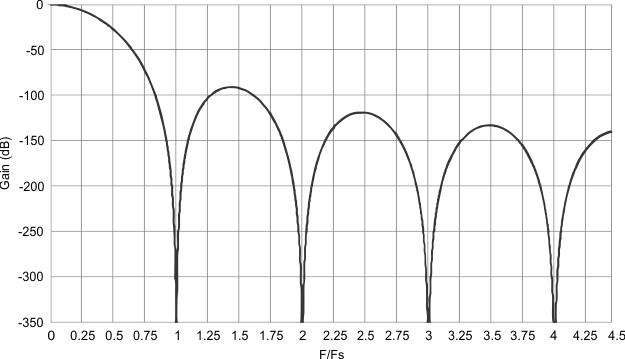

Figure 22-5 SDHS Filter Frequency Response, SDHSCTL1.OSR = 10

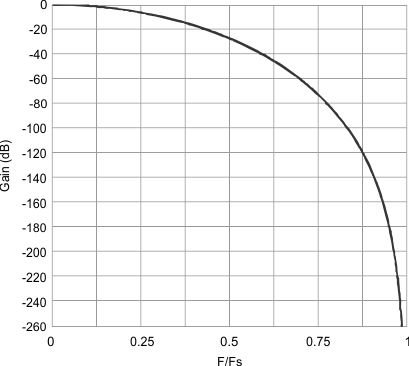

Figure 22-6 SDHS Filter Frequency Response Within fs, SDHSCTL1.OSR = 10
