4.27 Typical Characteristics

TPS65917-Q1 D001_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-4 SMPS Efficiency for all SMPS in Eco-mode
TPS65917-Q1 D003_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz VO = 1.8 V
Figure 4-6 SMPS Efficiency for SMPS1 and SMPS2
in Single-Phase PWM Mode With Temperature Variation
TPS65917-Q1 D005_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-8 SMPS Efficiency for SMPS3
in PWM Mode
TPS65917-Q1 D007_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-10 SMPS Efficiency for SMPS5
in PWM Mode
TPS65917-Q1 D009_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-12 SMPS Load Regulation for SMPS1 and SMPS2 Single-Phase PWM Mode

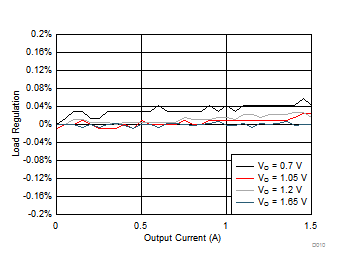

TPS65917-Q1 D010_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-14 SMPS Load Regulation for SMPS4
in PWM Mode
TPS65917-Q1 D012_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-16 SMPS Load Regulation for SMPS5
in PWM Mode
TPS65917-Q1 D002_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-5 SMPS Efficiency for SMPS1 and SMPS2
in Single-Phase PWM Mode
TPS65917-Q1 D004_slvsco4.gif
VI = 3.8 V VO = 1.8 V TA = 25°C
Figure 4-7 SMPS Efficiency for SMPS1 and SMPS2
in Single-Phase PWM Mode With Frequency Variation
TPS65917-Q1 D006_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-9 SMPS Efficiency for SMPS4
in PWM Mode
TPS65917-Q1 D008_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-11 SMPS Efficiency for SMPS12
in Dual-Phase PWM Mode
TPS65917-Q1 D013_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-13 SMPS Load Regulation for SMPS3, PWM Mode
TPS65917-Q1 D011_slvsco4.gif
VI = 3.8 V ƒS = 2.2 MHz TA = 25°C
Figure 4-15 SMPS Load Regulation for SMPS12
in Dual-Phase PWM Mode
