7.3.8.6.4 External (XTI) Clocks, Oscillators, and Supporting Circuitry

An external clock source (CMOS or crystal/resonator) is known as the XTI source. The XTI source can be either a CMOS logic source, or a crystal resonator (internal circuitry in the PCM9211 can start the crystal resonating). Whichever clock source is used, it must be 24.576 MHz.

The PCM9211 uses the XTI source as a reference clock in order to calculate the sampling frequency of the incoming S/PDIF stream. It is also used as the clock source in XTI clock source mode.

When using a resonator as an XTI source, the following points should be considered:

  • The 24.576-MHz resonator should be connected between the XTI and XTO pins
  • The resonator should be a fundamental mode type
  • A crystal or ceramic resonator can be used as the XTI source
  • The values of the load capacitors CL1 and CL2 and the current limiting resistor Rd all depend on the characteristics of the resonator
  • No external feedback resistor between the XTI and XTO pins is required, because the resistor is integrated into the device
  • No loads other than the resonator should be used on the XTO pin

When using an external oscillation circuit with a CMOS output, the following points should be considered:

  • Always supply a 24.576-MHz clock on the XTI pin
  • Only 3.3 V is supported on the XTI pin; 5 V is not supported
  • XTO should be left floating

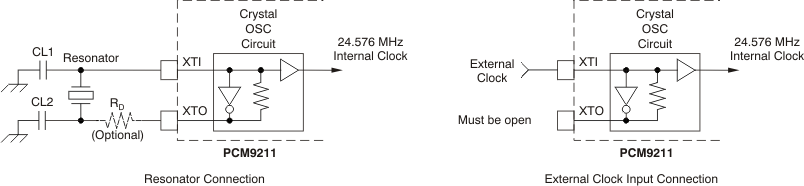

Figure 7-11 shows the connections for the XTI and XTO pins for both a resonator connection and an external clock input connection.

GUID-F56424AA-9F30-4442-8EFA-586A73ED87E2-low.gifFigure 7-11 XTI and XTO Connection Diagram

In XTI mode, the output clocks (SCKO, BCKO, and LRCKO) are generated from the XTI source clock.

Register 24h/OSCAUTO controls whether or not the internal oscillator functions while it is not required. When using the DIR as a clock source, the XTI source is not required; thus, the internal oscillator can be switched off. There is a constraint, however, that when the DIR wide mode is being set (for example, in 192-kHz support), the XTI is always used. The sampling frequency calculator also requires the XTI source.

XMCKO (the XTI clock buffered output) provides a buffered (and divided) XTI clock that can be output to MPIO_A. Register 24h/XMCKEN controls whether the XMCKO should be muted or not, and Register 24h/XMCKDIV controls the division factor.
