Table 5-30 EPI Host-Bus 8 and Host-Bus 16 Interface Characteristics

over operating free-air temperature (unless otherwise noted) (see Figure 5-19, Figure 5-20, Figure 5-21, and Figure 5-22)
NO.PARAMETERMINTYPMAXUNIT
E14 tISU Read data set up time 10 ns
E15 tIH Read data hold time 0 ns
E16 tDV WRn to write data valid 3.6 ns
E17 tDI Data hold from WRn invalid 1 EPI clock cycles
E18 tOV ALE/CSn to output valid 4 ns
E19 tOINV CSn to output invalid 4 ns
E20 tSTLOW WRn / RDn strobe duration low 1 EPI clock cycles
E21 tALEHIGH ALE duration high 1 EPI clock cycles
E22 tCSLOW CSn duration low 2 EPI clock cycles
E23 tALEST ALE rising to WRn / RDn strobe falling 2 EPI clock cycles
E24 tALEADD ALE falling to Address high impedance 1 EPI clock cycles

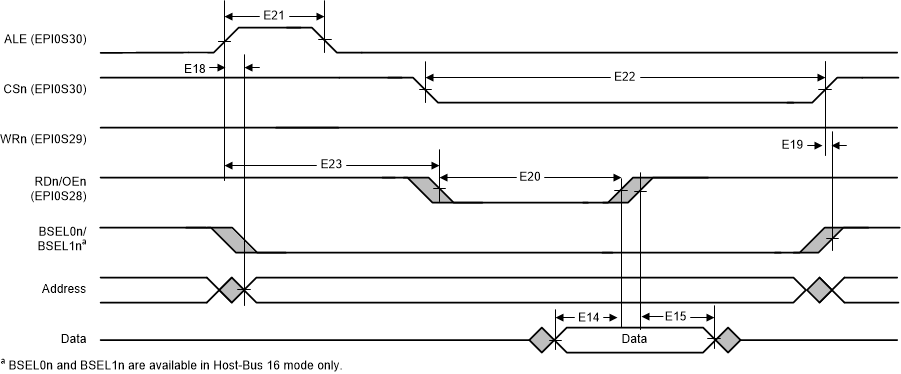

MSP432E411Y epi_hb_read.gifFigure 5-19 Host-Bus 8/16 Asynchronous Mode Read Timing

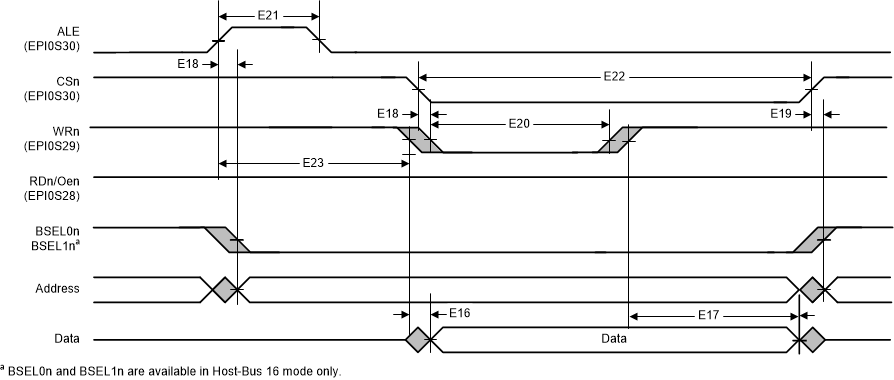

MSP432E411Y epi_hb_write.gifFigure 5-20 Host-Bus 8/16 Asynchronous Mode Write Timing

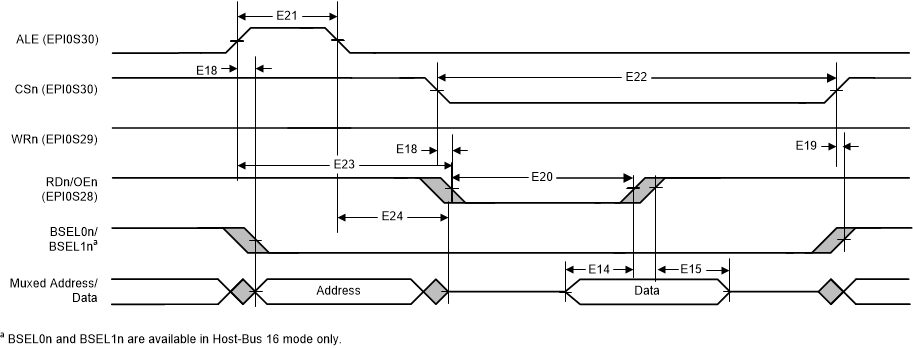

MSP432E411Y epi_hb_read_mux.gifFigure 5-21 Host-Bus 8/16 Mode Asynchronous Muxed Read Timing

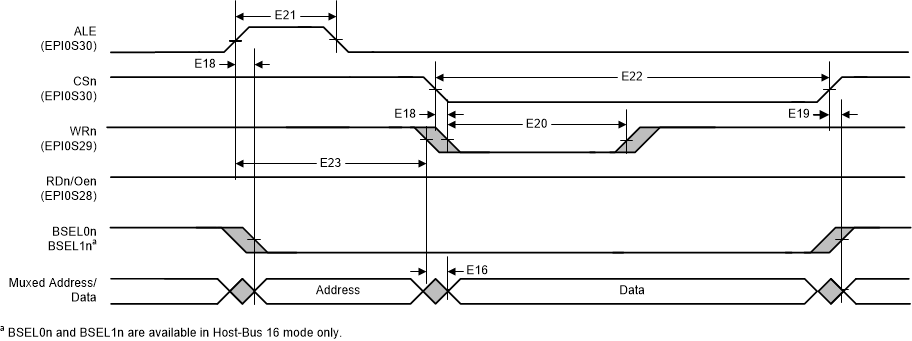

MSP432E411Y epi_hb_write_mux.gifFigure 5-22 Host-Bus 8/16 Mode Asynchronous Muxed Write Timing

Table 5-31 lists the switching characteristics of the general-purpose interface.
