Table 5-35 SSI Characteristics

over operating free-air temperature (unless otherwise noted) (see Figure 5-28, Figure 5-29, and Figure 5-30)
NO. PARAMETERMINTYPMAXUNIT
S1 tCLK_PER SSIClk cycle time As master(1) 16.67 ns
As slave(2) 100
S2 tCLK_HIGH SSIClk high time As master 8.33 ns
As slave 50
S3 tCLK_LOW SSIClk low time As master 8.33 ns
As slave 50
S4 tCLKR SSIClk rise time(3) 1.25 ns
S5 tCLKF SSIClk fall time (3) 1.25 ns
S6 tTXDMOV Master mode: master Tx data output (to slave) valid time from edge of SSIClk 4.00 ns
S7 tTXDMOH Master mode: master Tx data output (to slave) hold time after next SSIClk 0.60 ns
S8 tRXDMS Master mode: master Rx data In (from slave) setup time 7.89 ns
S9 tRXDMH Master mode: master Rx data In (from slave) hold time 0 ns
S10 tTXDSOV Slave mode: master Tx data output (to master) valid time from edge of SSIClk 47.60(4) ns
S11 tTXDSOH Slave mode: slave Tx data output (to master) hold time from next SSIClk 37.4(5) ns
S13 tRXDSSU Slave mode: Rx data in (from master) setup time 0 ns
S14 tRXDSH Slave mode: Rx data in (from master) hold time 37.03(6) ns
(1) In master mode, the system clock must be at least twice as fast as the SSIClk.
(2) In slave mode, the system clock must be at least 12 times faster than the SSIClk.
(3) The delays shown are using 12-mA drive strength.
(4) This MAX value is for the minimum slave mode tSYSCLK period (8.33 ns). To find the MAX tTXDSOV value for a larger tSYSCLK, use the equation: 4 × tSYSCLK + 14.25.
(5) This MIN value is for the minimum slave mode tSYSCLK (8.33 ns). To find the MIN tTXDSOH value for a larger tSYSCLK, use the equation: 4 × tSYSCLK + 4.08.
(6) This MIN value is for the minimum slave mode tSYSCLK (8.33 ns). To find the MIN tTXDSH value for a larger tSYSCLK, use the equation: 4 × tSYSCLK + 3.70.

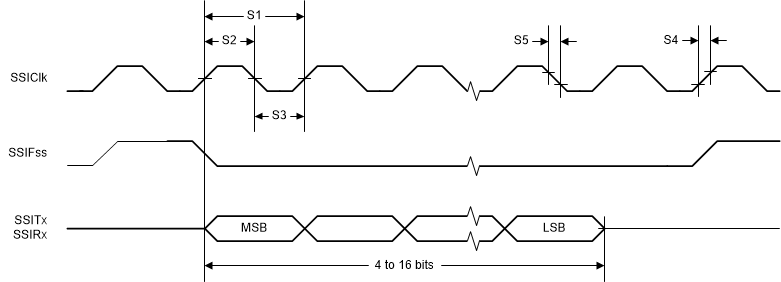

MSP432E411Y LMI-SSI-Timing_ti_blizzard.gifFigure 5-28 SSI Timing for TI Frame Format (FRF = 01), Single Transfer Timing Measurement

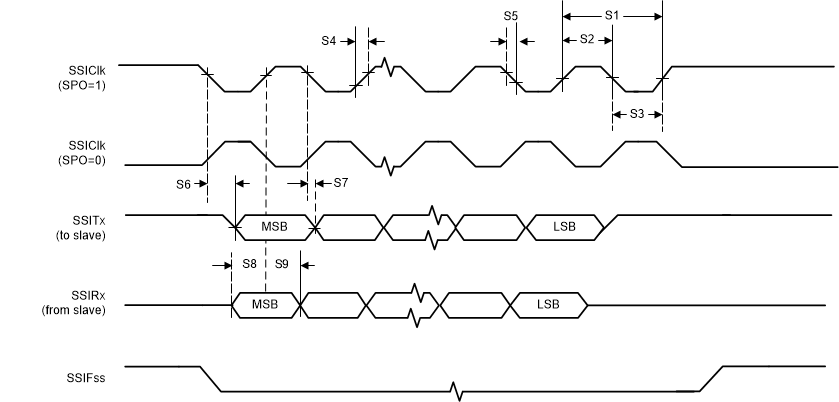

MSP432E411Y SSI_Timing_SPI_blizzard-master.gifFigure 5-29 Master Mode SSI Timing for SPI Frame Format (FRF = 00), With SPH = 1
MSP432E411Y SSI_Timing_SPI_blizzard-slave.gifFigure 5-30 Slave Mode SSI Timing for SPI Frame Format (FRF = 00), With SPH = 1

Table 5-36 lists the characteristics for Bi-SSI and Quad-SSI.
