Table 5-47 10-Mbps MII Transmit Timing

over operating free-air temperature (unless otherwise noted) (see Figure 5-40)
NO. PARAMETERMINTYPMAXUNIT
N45 tTXCK_HI EN0TXCK high time 190 200 210 ns
N46 tTXCK_LO EN0TXCK low time 190 200 210 ns
N47 tTX_DLY EN0TXCK to EN0TXDn, EN0TXEN delay 0 25 ns

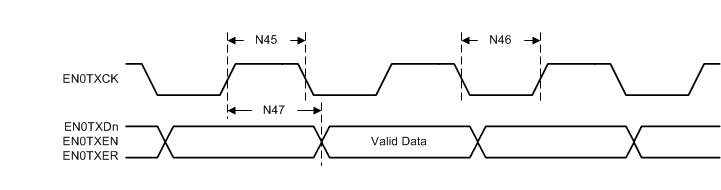

MSP432E411Y Ethernet_10Mbs_MII_TX.gifFigure 5-40 10-Mbps MII Transmit Timing

Table 5-48 lists the 10-Mbps MII receive timing.
