Table 5-37 I2C Characteristics

over operating free-air temperature (unless otherwise noted) (see Figure 5-31)
NO. PARAMETERMINTYPMAXUNIT
I1(1) tSCH Start condition hold time 36 system clock cycles
I2 (1) tLP Clock low period 36 system clock cycles
I3 (2) tSRT I2CSCL and I2CSDA rise time (VIL = 0.5 V to V IH = 2.4 V) See (2) ns
I4 tDH Data hold time Slave 2 system clock cycles
Master 7
I5 (3) tSFT I2CSCL and I2CSDA fall time (VIH = 2.4 V to V IL = 0.5 V) 9 10 ns
I6 (1) tHT Clock high time 24 system clock cycles
I7 tDS Data setup time 18 system clock cycles
I8 (1) tSCSR Start condition setup time (for repeated start condition only) 36 system clock cycles
I9 (1) tSCS Stop condition setup time 24 system clock cycles
I10 tDV Data valid Slave 2 system clock cycles
Master (6 × (1 + TPR)) + 1 system clock cycles
(1) Values depend on the value programmed into the TPR bit in the I2C Master Timer Period (I2CMTPR) register; a TPR programmed for the maximum I2CSCL frequency (TPR = 0x2) results in a minimum output timing listed in this table. The I2C interface is designed to scale the actual data transition time to move it to the middle of the I2CSCL low period. The actual position is affected by the value programmed into the TPR; however, the values in this table are minimum values.
(2) Because I2CSCL and I2CSDA operate as open-drain-type signals, which the controller can only actively drive low, the time I2CSCL or I2CSDA takes to reach a high level depends on external signal capacitance and pullup resistor values.
(3) Specified at a nominal 50-pF load

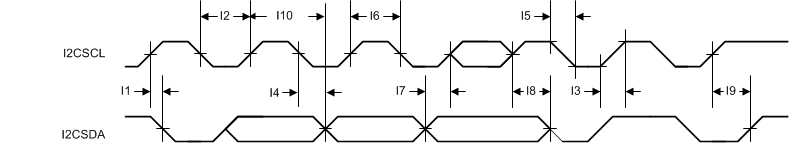

MSP432E411Y LMI_I2C_Timing.gifFigure 5-31 I2C Timing
