Table 5-53 RMII Receive Timing

over operating free-air temperature (unless otherwise noted) (see Figure 5-46)
NO. PARAMETERMINTYPMAXUNIT
N91 fREFCLK EN0RREF_CLK frequency 50 MHz
DCREFCLK EN0RREF_CLK duty cycle 40% 60%
N92 tRX_SU EN0RXDn, EN0RXEN, EN0CRS setup time to EN0RREF_CLK 4 ns
N93 tRX_HLD EN0RXDn, EN0RXEN, EN0CRS hold time from EN0RREF_CLK 2 ns

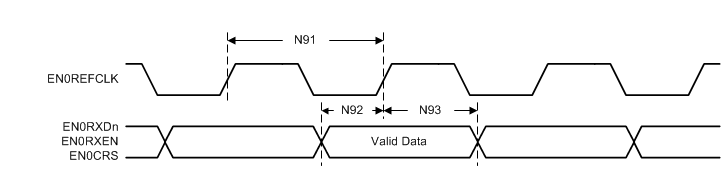

MSP432E411Y Ethernet_RMII_RX.gifFigure 5-46 RMII Receive Timing
