Table 5-46 100Base-TX Transmit Timing

over operating free-air temperature (unless otherwise noted) (see Figure 5-39)
NO. PARAMETERMINTYPMAXUNIT
N38 tRF 100-Mbps PMD output pair tR and tF(1) 3 4 5 ns
tRF_MM 100-Mbps tR and tF symmetry (2)(3) 500 ps
N39 tRF_JTTR 100-Mbps PMD output pair transmit jitter 1.4 ns
(1) Rise and fall times taken at 10% and 90% of the +1 or –1 amplitude.
(2) Normal mismatch is the difference between the maximum and minimum of all rise and fall times
(3) Choice of Ethernet transformer magnetics can affect this parameter.

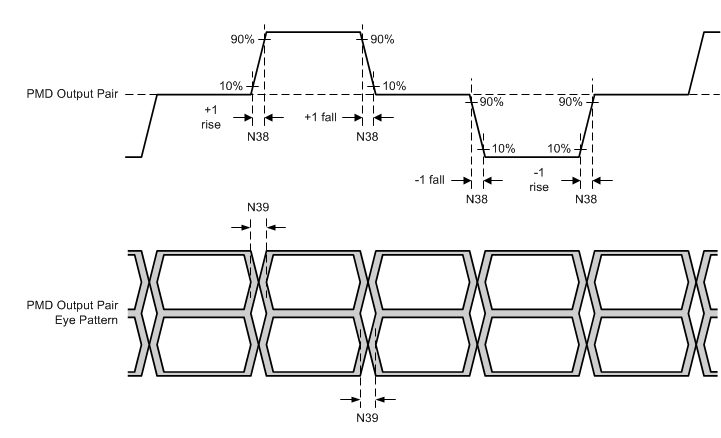

MSP432E411Y Ethernet_100Base-T_TX_RF_Jitter.gifFigure 5-39 100 Base-TX Transmit Timing

Table 5-47 lists the 10-Mbps MII transmit timing.
