Table 5-48 10-Mbps MII Receive Timing

over operating free-air temperature (unless otherwise noted) (see Figure 5-41)
NO. PARAMETERMINTYPMAXUNIT
N50 tRXCK_HI EN0RXCK high time 160 200 240 ns
N51 tRXCK_LO EN0RXCK low time 160 200 240 ns
N52 tRX_SU EN0RXCK to EN0RXDn, EN0RXDV, EN0RXER setup 100 ns
N53 tRX_HLD EN0RXCK to EN0RXDn, EN0RXDV, EN0RXER hold 100 ns

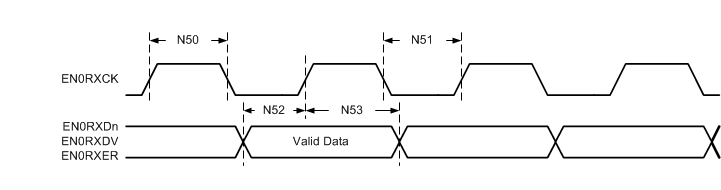

MSP432E411Y Ethernet_10Mbs_MII_RX.gifFigure 5-41 10-Mbps MII Receive Timing

Table 5-49 lists the 10Base-T normal link pulse timing.
