4.9 Production Distribution of LPM Supply Currents

VCC = 3 V

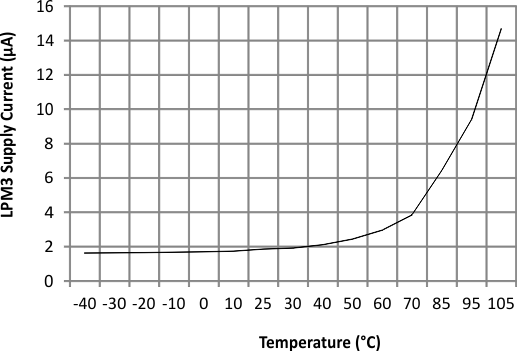

MSP430FR2355 MSP430FR2353 MSP430FR2155 MSP430FR2153 LPM3_IDD_RTC.gif
RTC enabled 12.5-pF crystal SVS disabled
Figure 4-1 Population vs Low-Power Mode 3 Supply Current
MSP430FR2355 MSP430FR2353 MSP430FR2155 MSP430FR2153 LPM35_IDD_RTC.gif
RTC enabled 12.5-pF crystal SVS enabled
Figure 4-3 LPM3.5 Supply Current vs Temperature

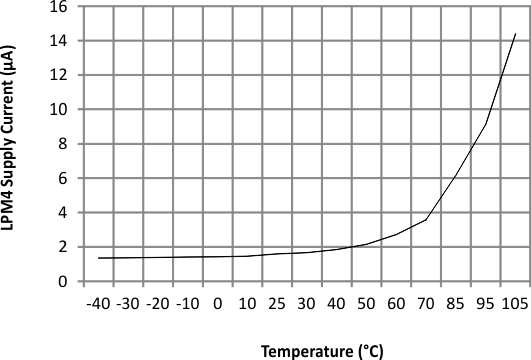

MSP430FR2355 MSP430FR2353 MSP430FR2155 MSP430FR2153 LPM4_IDD_RTC.gif
RTC enabled 12.5-pF crystal SVS disabled
Figure 4-2 Population vs Low-Power Mode 4 Supply Current

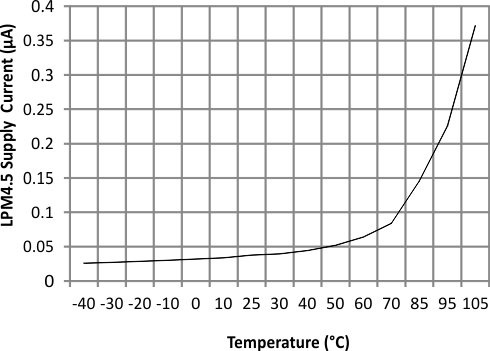

MSP430FR2355 MSP430FR2353 MSP430FR2155 MSP430FR2153 LPM45_IDD.gif
RTC disabled SVS disabled
Figure 4-4 LPM4.5 Supply Current vs Temperature
