5.24 USCI (SPI Slave Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-20 and Figure 5-21)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
tSTE,LEAD STE lead time
STE low to clock		 2.2 V, 3 V 50 ns
tSTE,LAG STE lag time
Last clock to STE high		 2.2 V, 3 V 10 ns
tSTE,ACC STE access time
STE low to SOMI data out		 2.2 V, 3 V 50 ns
tSTE,DIS STE disable time
STE high to SOMI high impedance		 2.2 V, 3 V 50 ns
tSU,SI SIMO input data setup time 2.2 V 20 ns
3 V 15
tHD,SI SIMO input data hold time 2.2 V 10 ns
3 V 10
tVALID,SO SOMI output data valid time UCLK edge to SOMI valid, CL = 20 pF 2.2 V 75 110 ns
3 V 50 75

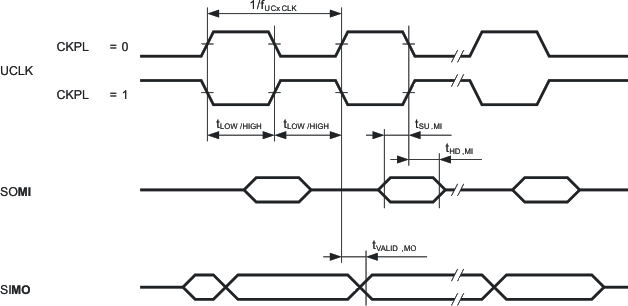

MSP430FG4619 MSP430FG4618 MSP430FG4617 MSP430FG4616 MSP430CG4619 MSP430CG4618 MSP430CG4617 MSP430CG4616 slas508_spi_mastermode1.gifFigure 5-18 SPI Master Mode, CKPH = 0

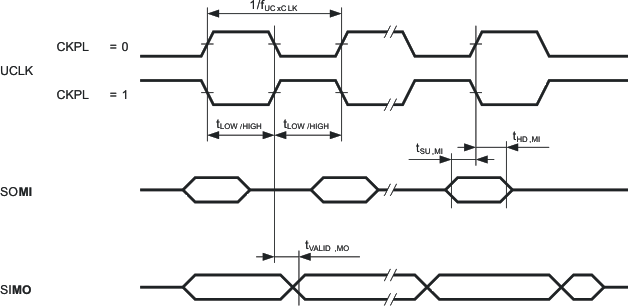

MSP430FG4619 MSP430FG4618 MSP430FG4617 MSP430FG4616 MSP430CG4619 MSP430CG4618 MSP430CG4617 MSP430CG4616 slas508_spi_mastermode2.gifFigure 5-19 SPI Master Mode, CKPH = 1
MSP430FG4619 MSP430FG4618 MSP430FG4617 MSP430FG4616 MSP430CG4619 MSP430CG4618 MSP430CG4617 MSP430CG4616 slas508_spi_slavemode1.gifFigure 5-20 SPI Slave Mode, CKPH = 0

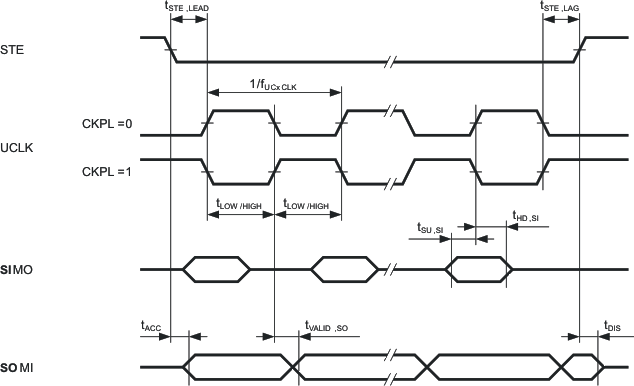

MSP430FG4619 MSP430FG4618 MSP430FG4617 MSP430FG4616 MSP430CG4619 MSP430CG4618 MSP430CG4617 MSP430CG4616 slas508_spi_slavemode2.gifFigure 5-21 SPI Slave Mode, CKPH = 1
