8.16 Typical Characteristics – POR and BOR

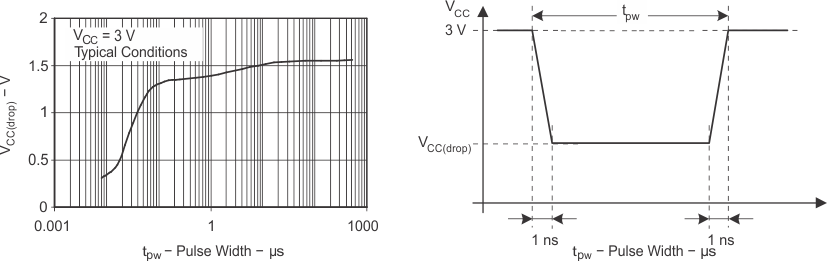

GUID-F3465267-BB54-456C-A64E-600FC03A567C-low.gifFigure 8-10 VCC(drop) Level With a Rectangular Voltage Drop to Generate a POR or BOR Signal
GUID-7EBC08C5-1FEF-4007-8F9B-0FBFA25BCF3D-low.gifFigure 8-11 VCC(drop) Level With a Triangular Voltage Drop to Generate a POR or BOR Signal
