3 说明

有助于满足最新平台，尤其是汽车雷达和摄像头以及工业雷达应用的电源管理要求。该器件包含两个降压直流/直流转换器和一个 5V 升压转换器/旁路开关，可支持安全关键型应用。该器件集成了两个用于外部电源的电压监控输入和一个窗口看门狗。

自动 PWM/PFM（AUTO 模式）运行可在降压转换器的较宽输出电流范围内实现较高效率。 采用远程电压检测功能来补偿转换器输出与负载点之间的 IR 压降，从而提高输出电压的精度。

器件信息(1)
器件型号 封装 封装尺寸（标称值）
LP87702-Q1 VQFN (32) 5.00mm × 5.00mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。
GUID-353606EA-EA9B-4EF5-9ACF-2208590AD898-low.gif简化版原理图

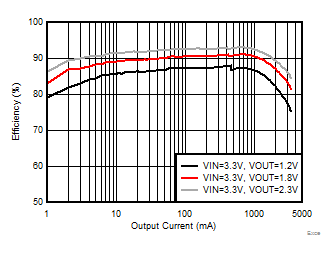

GUID-696CC16F-04DA-4973-A364-CFBD630D9663-low.gif降压效率与输出电流的关系
