8.2 Layout Example

Stencil parameters such as aperture area ratio and the fabrication process have a significant impact on paste deposition. Inspection of the stencil prior to placement of the WQFN package is highly recommended to improve board assembly yields. If the via and aperture openings are not carefully monitored, the solder may flow unevenly through the DAP. Stencil parameters for aperture opening and via locations are shown below:

GUID-0CED215C-0357-41D1-9DB4-E08C2DBB27E2-low.pngFigure 8-1 No Pullback WQFN, Single Row Reference Diagram
Table 8-1 No Pullback WQFN Stencil Aperture Summary for DS90UB913A-Q1
DEVICEPIN COUNTMKT DWGPCB I/O PAD SIZE (mm)PCB PITCH (mm)PCB DAP SIZE(mm)STENCIL I/O APERTURE (mm)STENCIL DAP APERTURE (mm)NUMBER OF DAP APERTURE OPENINGSGAP BETWEEN DAP APERTURE (Dim A mm)
DS90UB913A-Q132RTV0.25 x 0.60.53.1 x 3.10.25 x 0.71.4 x 1.440.2

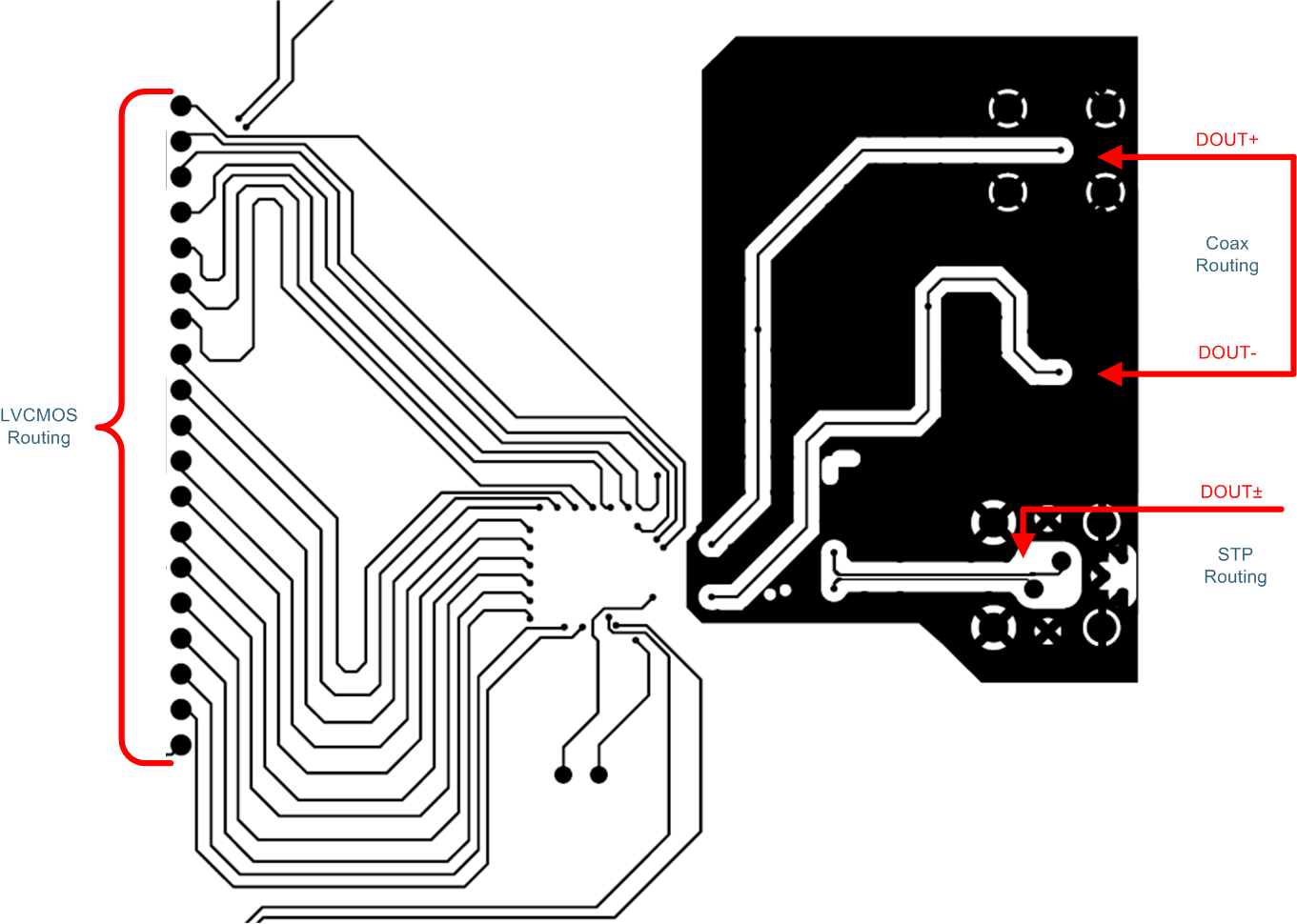

GUID-E07A6D12-9589-4C8A-97F7-B9A910F315D3-low.pngFigure 8-2 DS90UB913A-Q1 Serializer Example Layout

The following PCB layout examples are derived from the layout design of the DS90UB913A-Q1 Evaluation Module (DS90UB913A-CXEVM and DS90UB914A-CXEVM REV A User’s Guide). These graphics and additional layout description are used to demonstrate both proper routing and proper solder techniques when designing in this Serializer.
