6.9 Timing Diagrams

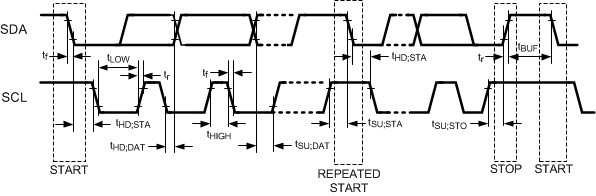

GUID-BA52E283-053C-404D-B4B0-76BC86A68492-low.gifFigure 6-1 Bi-directional Control Bus Timing
GUID-3BD63818-754F-41CF-B01C-C13FC845B3F3-low.gifFigure 6-2 “Worst Case” Test Pattern for Power Consumption
GUID-FDDE4757-3E6D-4294-9E08-910E94C85A9E-low.gifFigure 6-3 Serializer CML Output Load and Transition Times
GUID-1D9C6BBF-0059-4327-AC15-ACD125285544-low.gifFigure 6-4 Serializer CML Output Load and Transition Times
GUID-27B53B29-8DB4-41A7-82A9-6E163216A094-low.gifFigure 6-5 Serializer VOD Setup
GUID-72D3AB5B-AF95-448A-A01C-F489B2858214-low.gifFigure 6-6 Serializer VOD Diagram

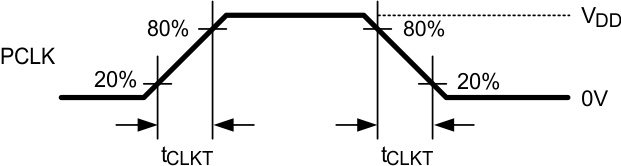

GUID-836CD6D4-2017-45A9-B815-18A20DA42B40-low.gifFigure 6-7 Serializer Input Clock Transition Times
GUID-8D288FBB-66DB-43A9-872D-E9BC7E66876D-low.gifFigure 6-8 Serializer Setup/Hold Times
GUID-66EF2778-AF07-4BEC-9F3B-72F49AF80255-low.gifFigure 6-9 Serializer PLL Lock Time
GUID-0FF6E848-FE86-4E8D-B36C-5CC353F39362-low.gifFigure 6-10 Serializer Delay
