8.3.16.4 Discrete Data Output Mode

In Discrete data output mode, the channel data are shifted out in parallel using individual channel data output pins DOUT[8:1]. After the 24th SCLK, the channel data are forced to zero. The data are also forced to zero for powered down channels. Figure 76 shows the discrete data output format.

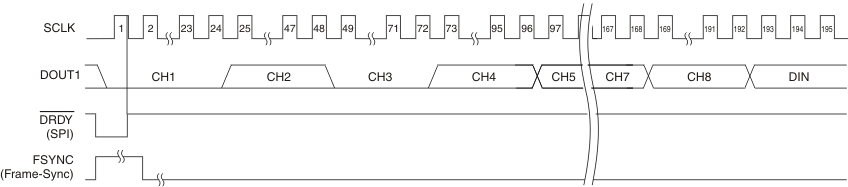

ADS1278-SP ai_tdm_fix_bas367.gifFigure 74. TDM Mode, Fixed-Position Data (Channels 1 And 3 Shown Powered Down)
ADS1278-SP ai_tdm_dynamic_bas367.gifFigure 75. TDM Mode, Dynamic Position Data (Channels 1 And 3 Shown Powered Down)

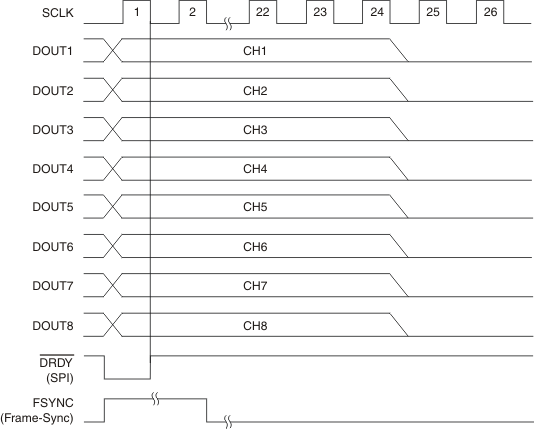

ADS1278-SP ai_discrete_bas367.gifFigure 76. Discrete Data Output Mode
