7.6 Timing Requirements: SPI Format(6)

For TA = –55°C to 125°C, IOVDD = 1.65 V to 3.6 V, and DVDD = 1.65 V to 1.95 V.
SYMBOL PARAMETER MIN TYP MAX UNIT
tCLK CLK period (1 / fCLK)(1) 37 10,000 ns
tCPW CLK positive or negative pulse width 15 ns
tCONV Conversion period (1 / fDATA)(2) 256 2560 tCLK
tCD(3) Falling edge of CLK to falling edge of DRDY 22 ns
tDS(3) Falling edge of DRDY to rising edge of first SCLK to retrieve data 1 tCLK
tMSBPD DRDY falling edge to DOUT MSB valid (propagation delay) 16 ns
tSD(3) Falling edge of SCLK to rising edge of DRDY 18 ns
tSCLK(4) SCLK period 1 tCLK
tSPW SCLK positive or negative pulse width 0.4 tCLK
tDOHD(3)(5) SCLK falling edge to new DOUT invalid (hold time) 10 ns
tDOPD(3) SCLK falling edge to new DOUT valid (propagation delay) 32 ns
tDIST New DIN valid to falling edge of SCLK (setup time) 6 ns
tDIHD(5) Old DIN valid to falling edge of SCLK (hold time) 6 ns
(1) fCLK = 27-MHz maximum.
(2) Depends on MODE[1:0] and CLKDIV selection. See Table 5 (fCLK / fDATA).
(3) Load on DRDY and DOUT = 20 pF.
(4) For best performance, limit fSCLK / fCLK to ratios of 1, 1/2, 1/4, 1/8, etc..
(5) tDOHD (DOUT hold time) and tDIHD (DIN hold time) are specified under opposite worst-case conditions (digital supply voltage and ambient temperature). Under equal conditions, with DOUT connected directly to DIN, the timing margin is > 4 ns.
(6) Timing parameters are characterized or assured by design for specified temperature but not production tested.

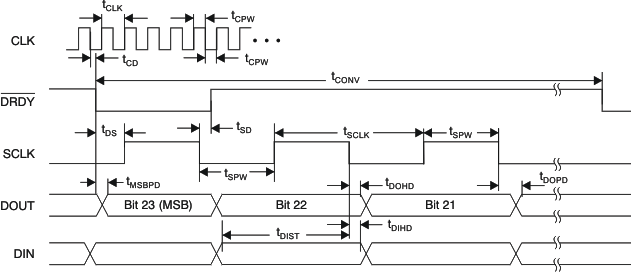

ADS1278-SP spi_time-bas367.gifFigure 1. SPI Format Timing Characteristics
