2.6.1 TX and RX Antenna Arrays

The following sections describe the TX and RX antenna array structures included on the board. The element spacing information can be used to form the necessary processing models of the MIMO virtual array and Beam-Forming phased array.

swru553-cascade-rf-design-spec-diagrams-txrx-arrays.gifFigure 12. PCB Antenna Arrays

Reset Status LED Callouts:

  1. RX Array A - 8, lambda/2, linear elements - azimuth displacement only
  2. RX Array B – 4, lambda/2, linear elements - azimuth displacement only
  3. RX Array C – 4, lambda/2, linear elements - azimuth displacement only
  4. TX array – 9, lambda × 2, linear elements in azimuth. 4 minimum redundancy array (MRA) elements in elevation.
swru553-cascade-rf-design-spec-diagrams-rx-array-drawing.gifFigure 13. RX Antenna Array Dimensions

Table 5. RX Antenna Array Dimensions

Dimension Label Dimension (mils) Dimension (78.5 GHz lambda)
A1 76.78 0.5
A2 4069.34 26.5
A3 614.24 4.0
A4 2456.96 16.0

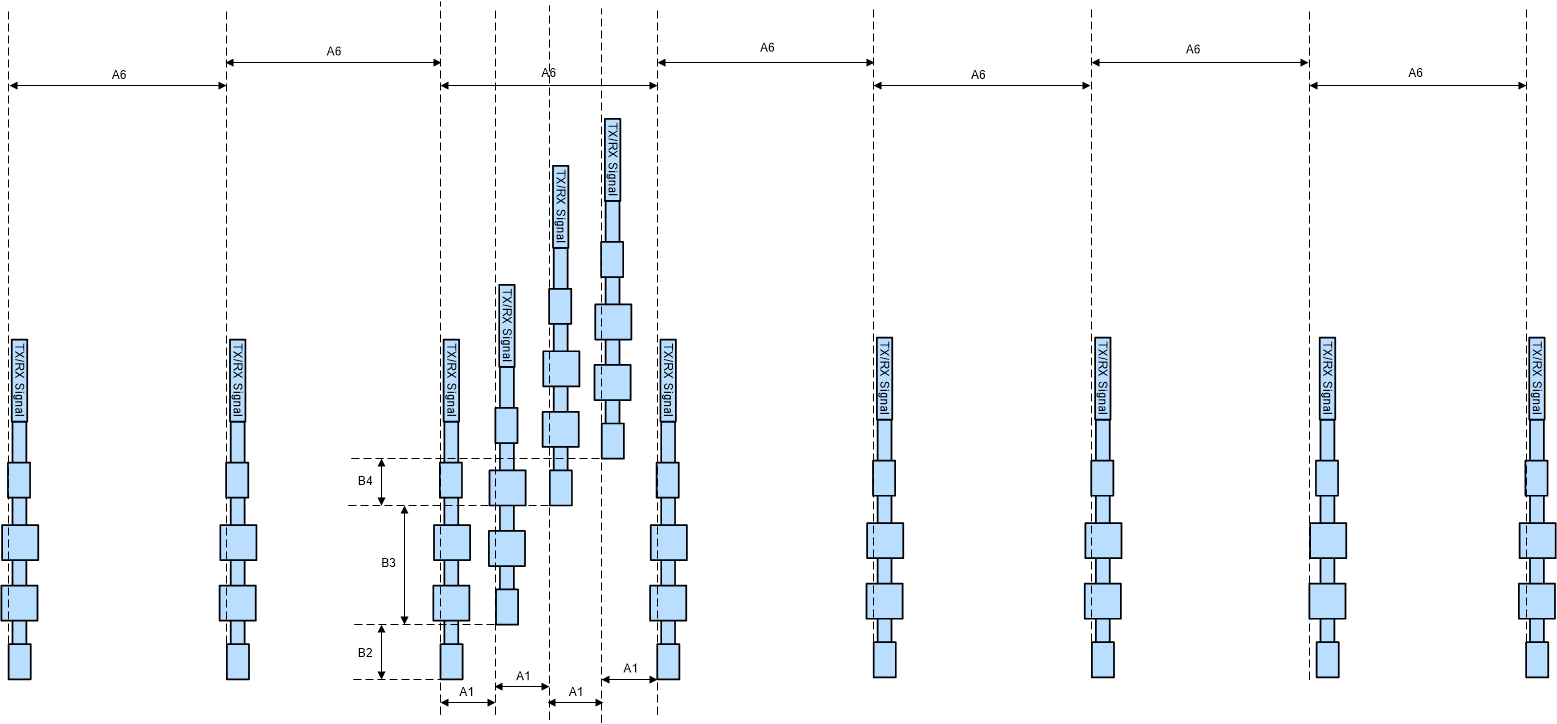

swru553-cascade-rf-design-spec-diagrams-tx-array-drawing.gifFigure 14. TX Antenna Array Dimensions

Table 6. TX Antenna Array Dimensions

Dimension Label Dimension (mils) Dimension (77 GHz lambda)
A1 76.78 0.5
A5 1191.5 7.759
A6 307.12 2.0
B1 2928.84 19.072
B2 76.78 0.5
B3 230.36 1.5
B4 153.56 1.0

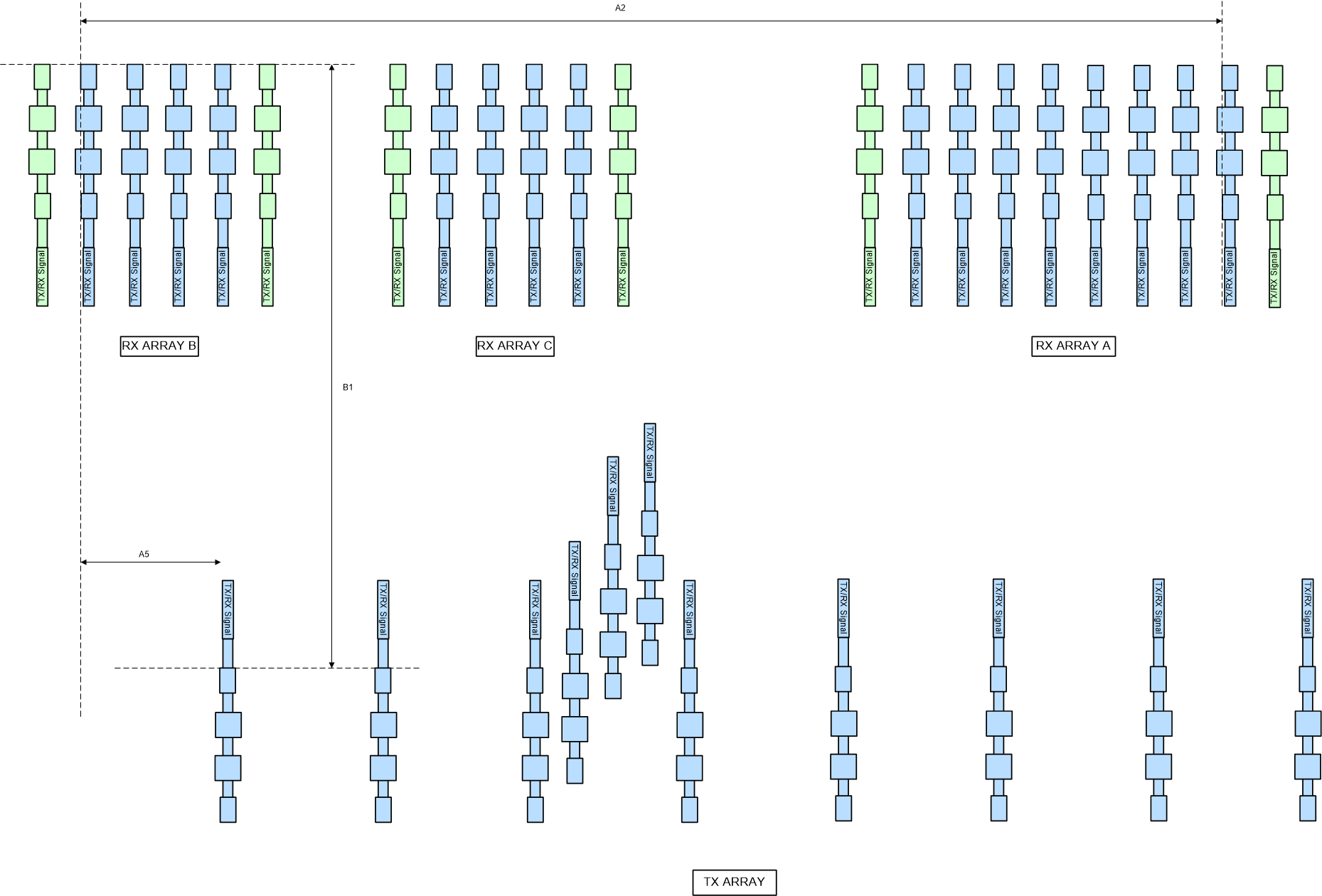

swru553-cascade-rf-design-spec-diagrams-tx-rx-array-drawing.gifFigure 15. TX and RX Antenna Array Relative Dimensions
