2.5 Connectors

To keep out of the field of view of the etched antenna array on the top layer (front) of the board, all connectors are placed on the bottom layer (back) of the board.

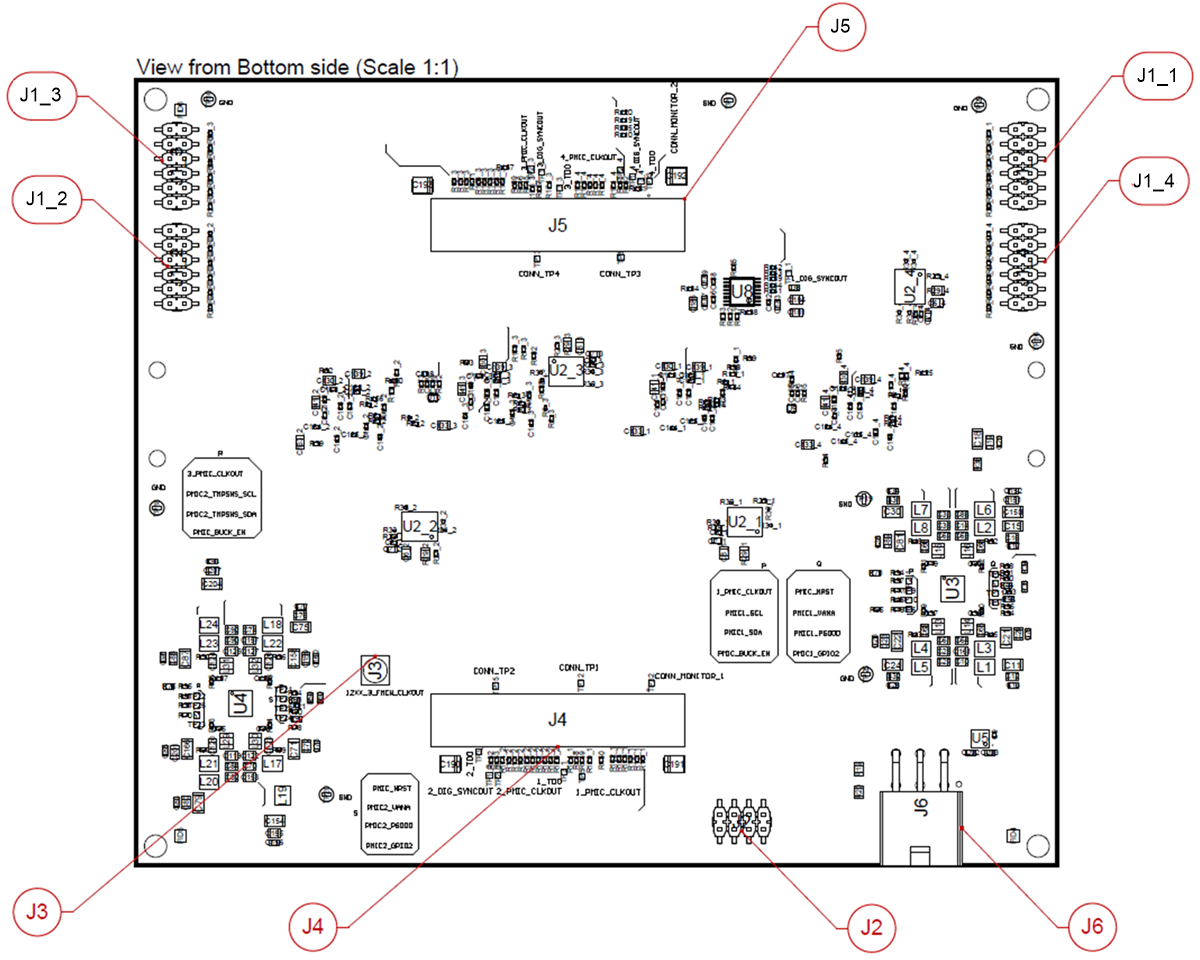

swru553-cascade-rf-design-spec-diagrams-connectors-bottom1.pngFigure 8. MMWCAS-RF-EVM (Bottom-View) Connector Placements and Callouts

Connector Callouts

  • J6 - Auxillary Power Connector
  • J4 - Host Board Connector (AWRx #1, AWRx #2)
  • J5 - Host Board Connector (AWRx #3, AWRx #4)
  • J3 - 20 GHz LO Debug Connecctor
  • J2 - AWR OSC_CLKOUT Debug Header
  • J1_1 - AWRx #1 Debug Header
  • J1_2 - AWRx #2 Debug Header
  • J1_3 - AWRx #3 Debug Header
  • J1_4 - AWRx #4 Debug Header
