2.6.2 PCB Antenna Element

Each TX/RX antenna element is implemented as a series-fed, Microstrip patch array. The following figures and tables describe this antenna element. The element is implemted with a GCPW feed to Microstrip transition, and then Microstrip stub matching into the first patch of the seried-fed array.

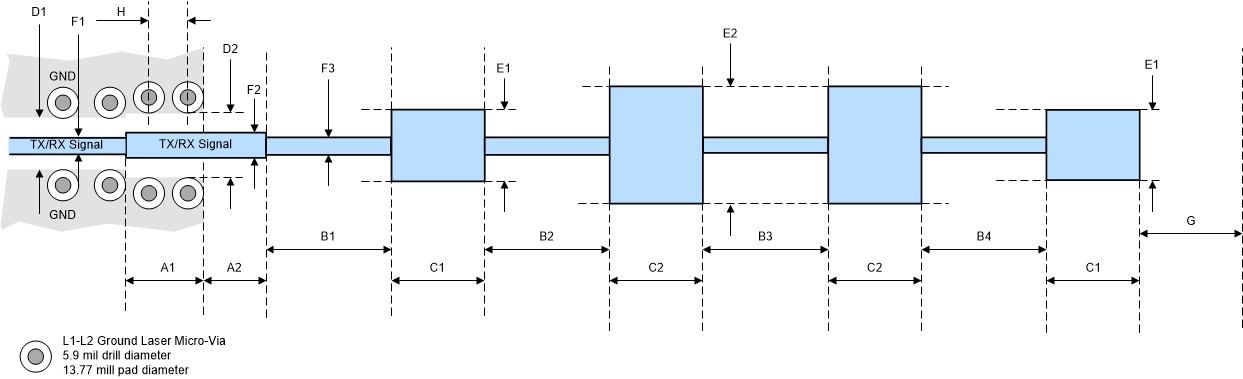

swru553-cascade-rf-design-spec-diagrams-patch-antenna-drawing.gifFigure 16. Cascade RF Series-Fed, Microstrip Patch Array Antenna Element Dimensions

Table 7. Cascade RF Series-Fed, Microstrip Patch Array Antenna Element Dimensions

Dimension Label Dimension (mils)
A1 27.568
A2 11.802
B1 47.24
B2 49.21
B3 45.27
B4 49.21
C1 42.52
C2 40.95
D1 16.722
D2 20.002
E1 39.38
E2 55.12
F1 8.4
F2 10.62
F3 3.94
G (1) > 78.7402
H <= 20.67
  1. Dimension G is the is the minimum keepout from any structure adjacent to the antenna (vias, traces, copper pours, and so forth).
