1.11.10 Registers Tab - Address 0x00 Expanded

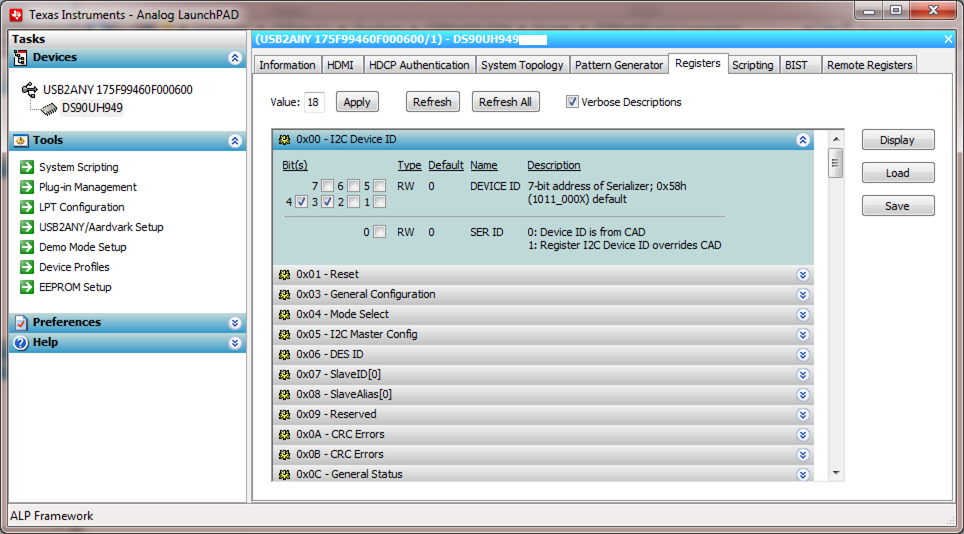

Double-click on the Address bar or single-click the to expand the Address 0x00 content by bits. Any register address displayed can be expanded.

Any RW Type register () can be written into by either:

• writing the hex value into the “Value:” box ()
• putting the pointer into the individual register bit(s) box by a left mouse click to put a check mark (indicating a “1”),
• unchecking the check mark (indicating a “0”).

Click “Apply” to write to the register and “Refresh” to see the new value of the selected (highlighted) register.

The box toggles on every mouse click.
